Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY

Spiral sand washing machines are divided into single spiral and double spiral types, and are mainly used for washing, grading, impurity removal, and washing of fine and coarse grained materials in sand and gravel fields, highways, hydropower, construction and other industries. They have the characteristics of low power consumption and high cleaning degree. The good sealing structure ensures the high efficiency and durability of the equipment, good cleaning and dehydration effects, and stable fine grain products.
product introduction
CATHAY spiral sand washing machine is specially designed for cleaning sand and gravel aggregates and mine tailings. It uses double spiral strong rolling technology to achieve efficient cleaning. The mud content of finished sand is ≤0.8% (national standard ≤3%), the fine sand recovery rate is ≥95%, and the single machine processing capacity is 50-500 tons/hour.
Core advantages
✅ 99% cleaning rate
- Extended spiral trough (≥6 meters), mud and sand are fully separated
- Adjustable inclination design (15°-25°), adaptable to different mud contents
✅ Zero loss of fine sand
- Optional cyclone + dewatering screen recovery system
- Recovery rate of fine sand above 0.075mm ≥95%
✅ Water-saving and durable
- Water consumption is only 1.8m³/ton of sand (3-5m³ for traditional equipment)
- Blade lining wear-resistant alloy steel, life of 20,000 hours
✅ Intelligent operation and maintenance
- Automatic protection against current overload
- Bearing seals to prevent sand, free replacement for 3 years
Technical parameters (LX-1500 standard model)
| Parameters | Indicators |
|---------------|-------------------|
| Processing capacity | 150t/h |
| Spiral diameter | Φ1500mm |
| Power | 15kW |
| Water consumption | 270m³/h |
| Cleaning rate | ≥99% |
| Fine sand recovery rate | ≥95% (with recovery system) |
Compared with traditional equipment
| Indicators | CATHAY screw machine | Ordinary sand washing machine |
|---------------|-------------|-----------|
| Mud content | ≤0.8% | 2%-3% |
| Water consumption per ton of sand | 1.8m³ | 4m³ |
| Maintenance cycle | 500 hours | 200 hours |
Applicable scenarios
✔ Sand and gravel aggregate washing and mud removal ✔ River sand mining and purification
✔ Iron ore tailings recovery ✔ Construction waste recycling
Table parameters
螺旋直径 螺旋转速 Diameter(mm)Speed(r/min)
Diameter(mm)Speed(r/min)
er channe 宽(mm)
倾斜角( · ) Angle of roll
洗砂量(t/h) Sand return
Spiral Sand Washer
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore
CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore
Subject : Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

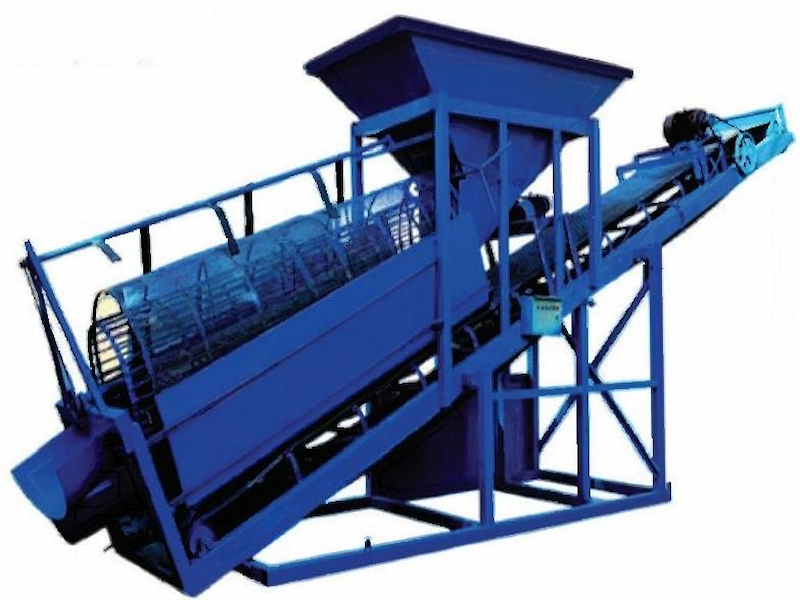

CATHAY SWS-200 Sand Screening Machine | Processing capacity 200t/h including fine sand recovery learn more

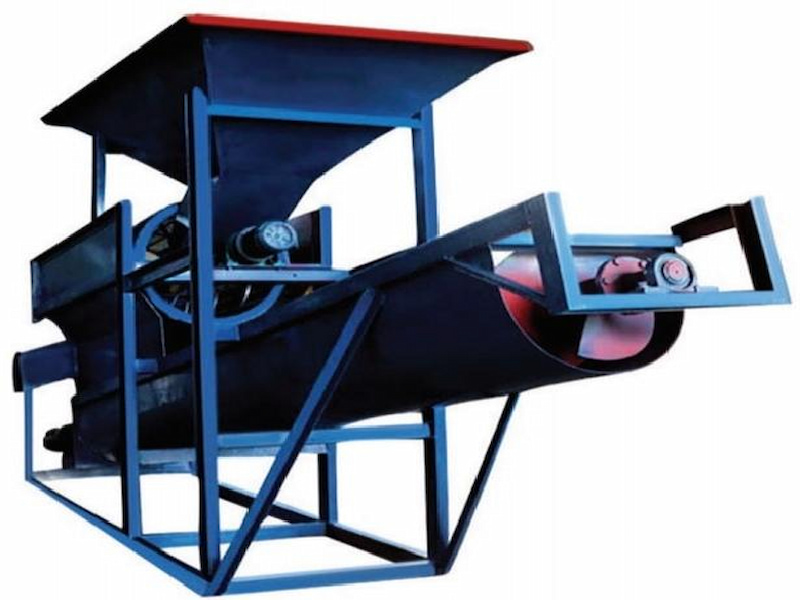

All-in-One Sand Washing Plant - Screening & Dewatering System | CATHAY learn more

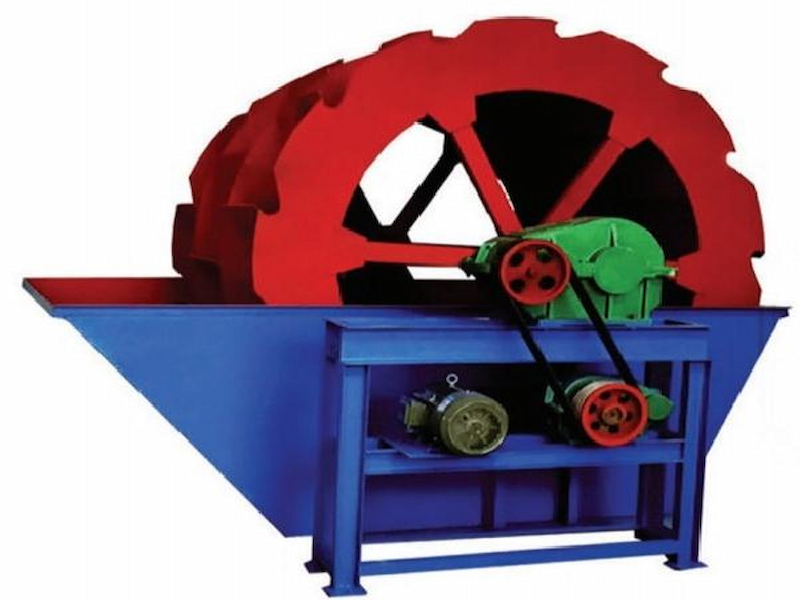

CATHAY bucket wheel sand washing machine | Sand and gravel aggregate cleaning rate 99% Support customization learn more
Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY learn more

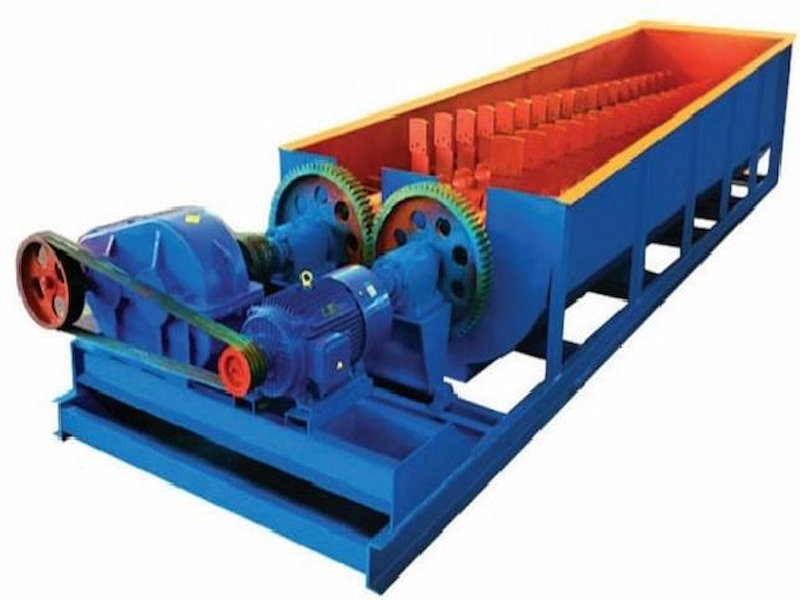

CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore learn more

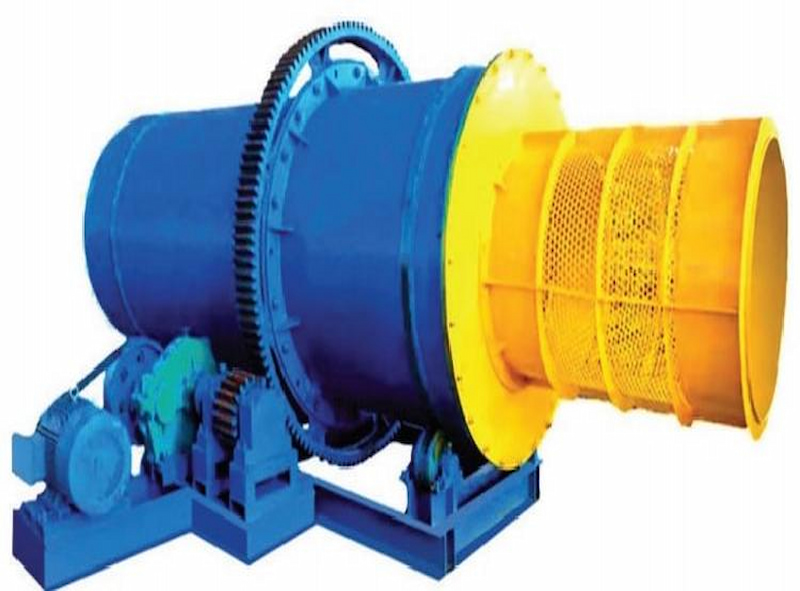

CATHAY drum ore washer | Powerful scrubbing + screening in one, processing high mud ore 200t/h learn more
