Fine Sand Recovery Unit Manufacturer | 95% Efficiency | CATHAY

The fine sand recycling machine is a equipment developed for the dehydration,dewatering,and desilting of slurry materials.Its main function is to clean,dehydrate,and classify sand and gravel.It can effectively recover a large amount of fine sand lost by traditional sand washing machines in the sand making industry,improve economic benefits,and reduce the processing cost of tailings and the pollution and damage caused by the loss of fine sand to the environment.
product introduction
Product Overview
CATHAY fine sand recovery machine is specially designed for sand washing wastewater, integrating cyclone separation + high-frequency dehydration technology to achieve efficient recovery of fine sand (0.075-0.6mm). Recovery rate ≥ 95%, processing capacity 50-500 tons/hour, zero sewage discharge meets the standard, solving the problem of fine sand loss and environmental protection.
Core advantages
✅ Recovery rate ≥ 95%
- Cyclone concentration + dewatering screen secondary recovery, fine sand loss rate ≤ 3%
- Finished sand mud content ≤ 1% (national standard ≤ 3%)
✅ Environmental protection and energy saving
- Wastewater recycling, water consumption reduced by 60%
- Power consumption per ton of sand ≤ 0.8kW·h
✅ Durable and maintenance-free
- Cyclone lined with silicon carbide ceramic (Mohs hardness 9.2)
- Bearing IP68 protection, life 50,000 hours
✅ Intelligent control
- Automatic concentration monitoring and adjustment
- Overload shutdown protection
Technical parameters (standard FR-200)
| Parameters | Indicators |
| Processed water volume | 200m³/h |
| Recovered fine sand volume | 30-50t/h |
| Power | 7.5kW (cyclone) + 5.5kW (dehydration) |
| Recycling particle size | 0.075-0.6mm |
| Equipment weight | 4.2t |
Comparison with traditional methods
| Indicators | CATHAY recycling machine | Sedimentation tank |
| Recovery rate | ≥95% | 60%-70% |
| Land area | 20㎡ | 200㎡+ |
| Dredging cost | 0 yuan/ton | 8-12 yuan/ton |
Applicable scenarios
✔ Recovery of fine sand from sand and gravel plant water washing wastewater
✔ Resource utilization of fine particles from tailings in ore dressing plants
✔ Construction waste recycled aggregate washing line
✔ Precision classification of glass sand/quartz sand
旋流器(mm) Hydrocyclone
处理量(m³/h) Capacity
脱水筛Dewatering screen
Fine sand recycling machine
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next Zero fine sand loss sand washing machine | Moisture content ≤15% Fine sand recovery ≥95% - CATHAY
Zero fine sand loss sand washing machine | Moisture content ≤15% Fine sand recovery ≥95% - CATHAY
Subject : Fine Sand Recovery Unit Manufacturer | 95% Efficiency | CATHAY
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

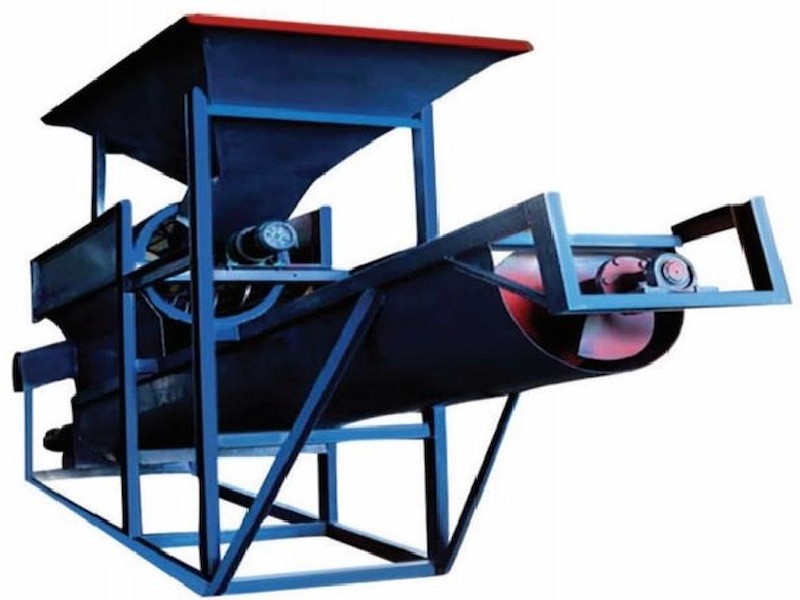

CATHAY SWS-200 Sand Screening Machine | Processing capacity 200t/h including fine sand recovery learn more

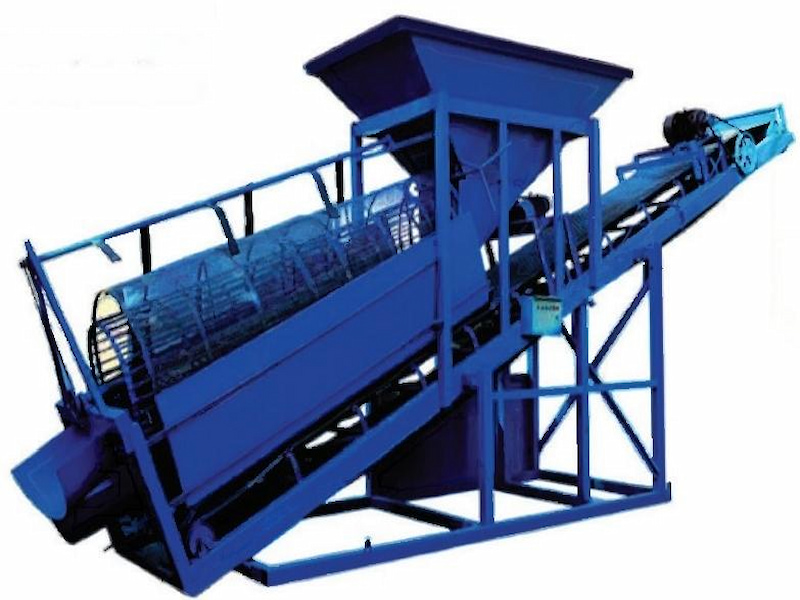

All-in-One Sand Washing Plant - Screening & Dewatering System | CATHAY learn more

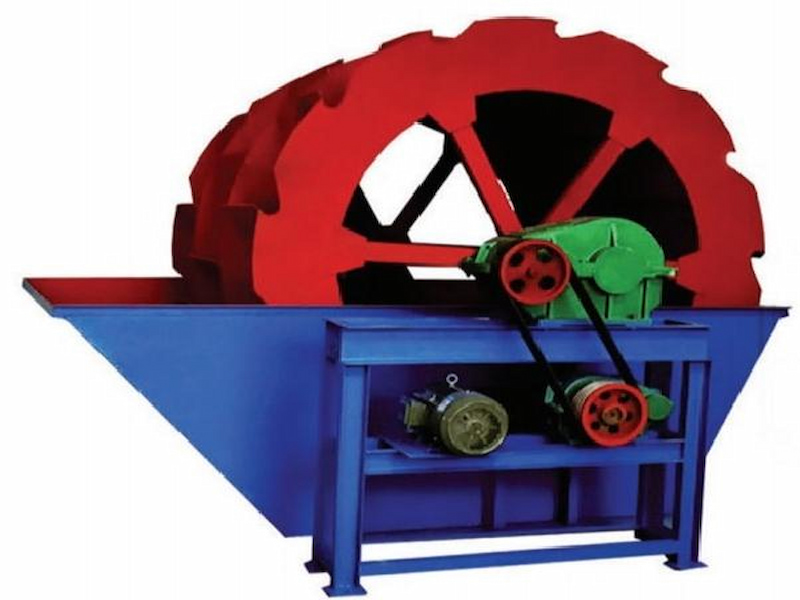

CATHAY bucket wheel sand washing machine | Sand and gravel aggregate cleaning rate 99% Support customization learn more

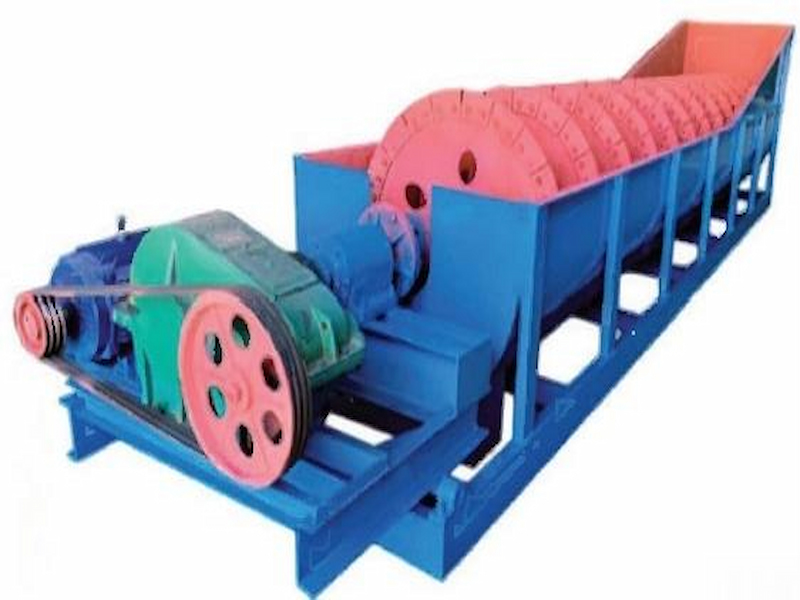

Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY learn more

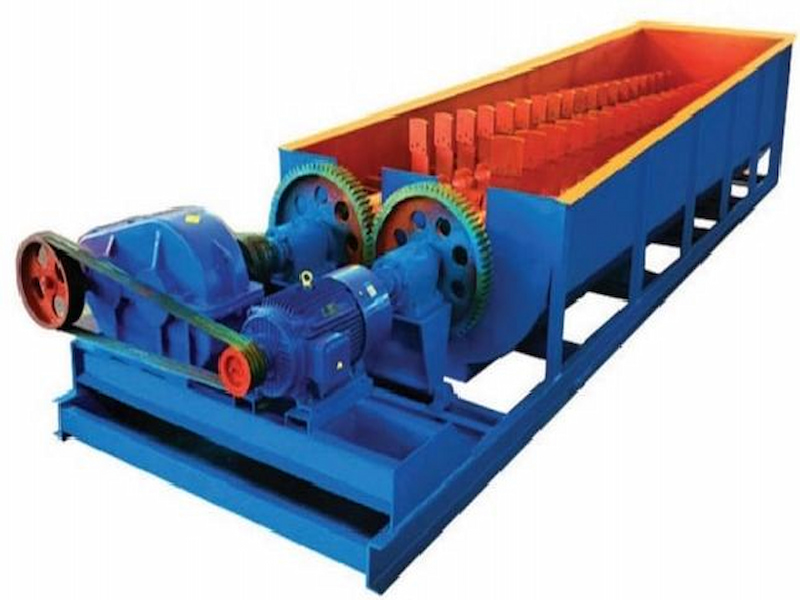

CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore learn more

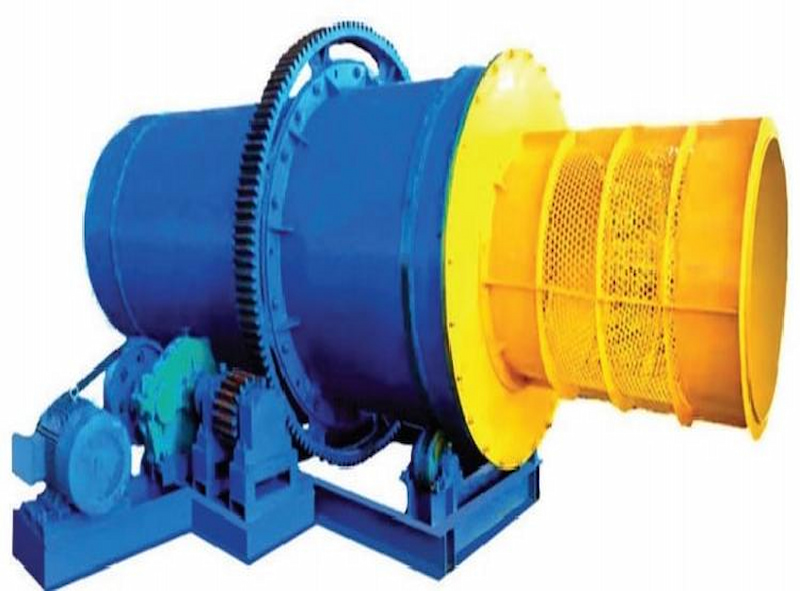

CATHAY drum ore washer | Powerful scrubbing + screening in one, processing high mud ore 200t/h learn more
