CATHAY hydrocyclone | Slurry classification and concentration expert Separation accuracy 0.025mm
Hydrocyclone is a classification equipment that uses centrifugal force to accelerate the settling of mineral particles. Pressure feeding is required,which consumes a lot of power, occupies a smallarea,is cheap,has a large processing capacity, high classification efficiency,and can obtain very fine overflow products.It is mostly used in the second stage closed circuit grinding.
product introduction
Product Overview
CATHAY hydrocyclone adopts the centrifugal separation principle and is specially designed for pulp classification/concentration/de-sludge. The separation accuracy is 0.025-0.15mm, the processing capacity is 20-800m³/h, and the underflow concentration is ≥65%. It is suitable for the efficient separation needs in metal mines, sand and gravel plants, chemical industry and other fields.
Core advantages
✅ Micron-level classification
- Classification accuracy 0.025mm (400 mesh), overflow fineness -0.074mm containing ≤10%
- Concentration ratio up to 1:15 (traditional equipment 1:8)
✅ Super wear resistance
- Lined with silicon carbide ceramic (Mohs hardness 9.2) or polyurethane (Shore hardness 95A)
- Continuous operation life ≥50,000 hours
✅ Intelligent regulation
- Automatic pressure monitoring (0.05-0.35MPa adjustable)
- IoT remote warning of blockage risk
✅ Multi-scenario adaptation
- Metal ore version: wear-resistant ceramic lining (gold/iron ore slurry classification)
- Chemical version: 316L stainless steel/PP material (acid and alkali corrosion resistant)
- Sand and gravel version: anti-blocking feeder (high sand content working condition)
Technical parameters (standard HC-350)
| Parameters | Indicators |
| Cyclone diameter | Φ350mm |
| Processing capacity | 80-120m³/h |
| Working pressure | 0.1-0.2MPa |
| Grading particle size | 0.037-0.15mm |
| Underflow concentration | ≥65% |
| Overflow fineness | -0.074mm≤15% |
Comparison with traditional equipment
| Index | CATHAY cyclone | Sedimentation tank |
| Grading accuracy | 0.025mm | 0.1mm |
| Concentration efficiency | Concentration completed in 5 minutes | 2-4 hours |
| Floor area | 2㎡ | 200㎡+ |
Four major application scenarios
✔ Metal ore classification:
- Gold/iron ore grinding circuit classification (overflow-0.074mm≤10%)
✔ Tailings concentration:
- Underflow concentration ≥ 65% (meet dry stack requirements)
✔ Sand and gravel plant recycling:
- 0.15mm fine sand recovery rate ≥ 95%
✔ Chemical separation:
Hydrofluoric acid corrosion resistance (applicable to PH1-14)
Table parameters
锥角(") Cone angle
溢流内径 (mm) Caliber
底流口径 (mm) Caliber
给料粒度 (mm) Granularity
给矿压力 (MPa) Pressure
处理能力 (m³/h) Capacity
外形尺寸(mm) Shape size
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next Wear-resistant scrubber | Gold/manganese ore cementation ore crushing Applicable to mud content ≤50% - CATHAY
Wear-resistant scrubber | Gold/manganese ore cementation ore crushing Applicable to mud content ≤50% - CATHAY
Subject : CATHAY hydrocyclone | Slurry classification and concentration expert Separation accuracy 0.025mm
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

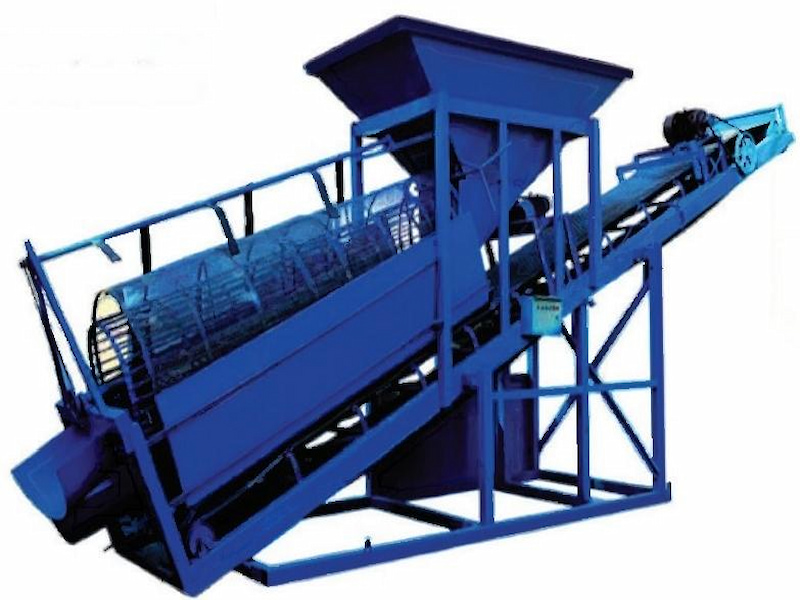

CATHAY SWS-200 Sand Screening Machine | Processing capacity 200t/h including fine sand recovery learn more

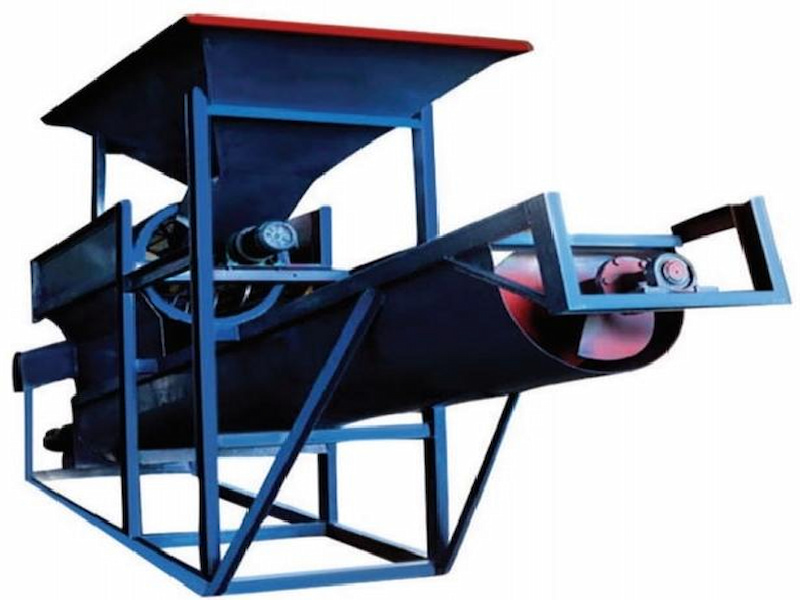

All-in-One Sand Washing Plant - Screening & Dewatering System | CATHAY learn more

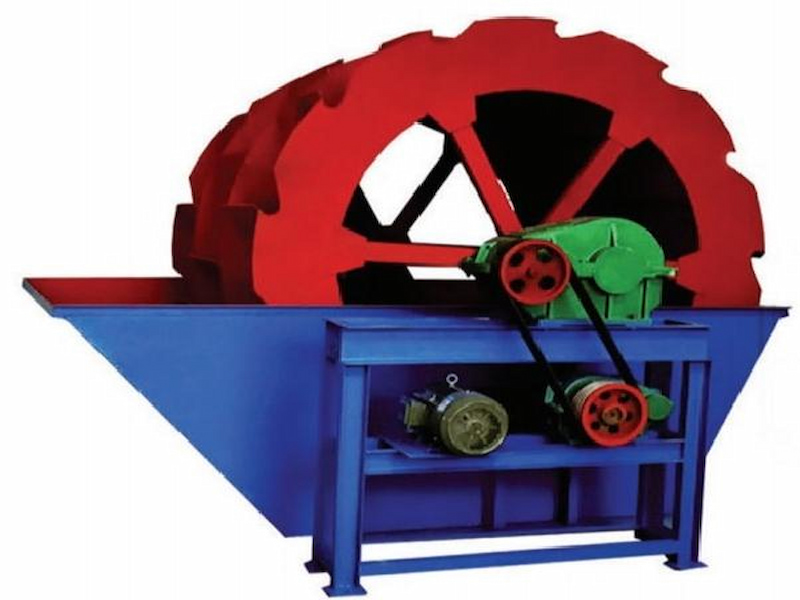

CATHAY bucket wheel sand washing machine | Sand and gravel aggregate cleaning rate 99% Support customization learn more

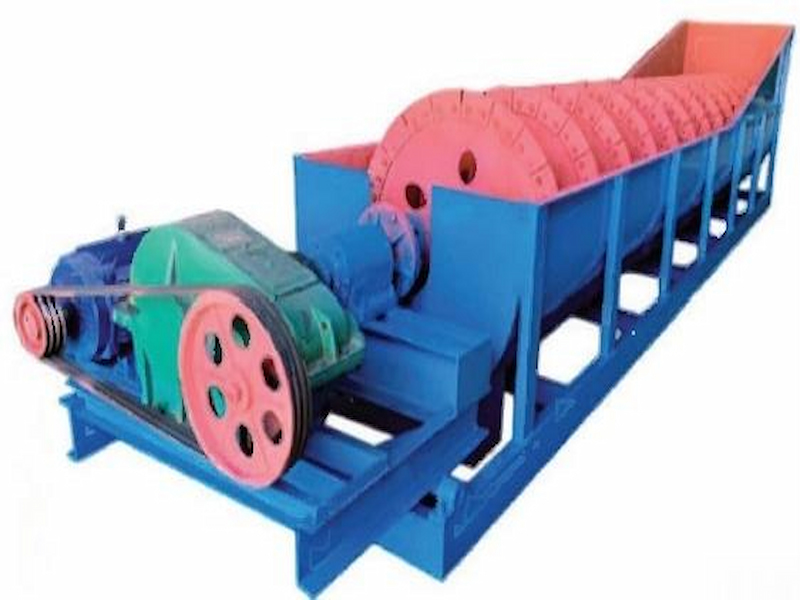

Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY learn more

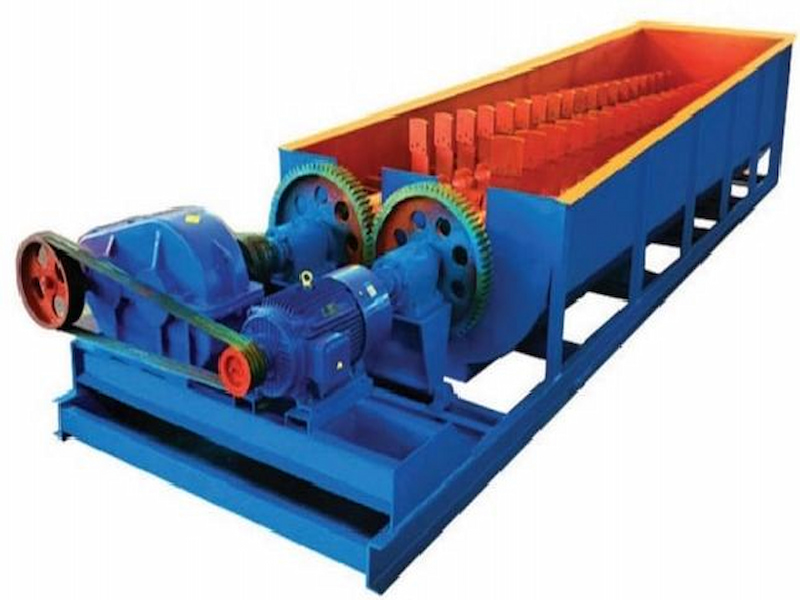

CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore learn more

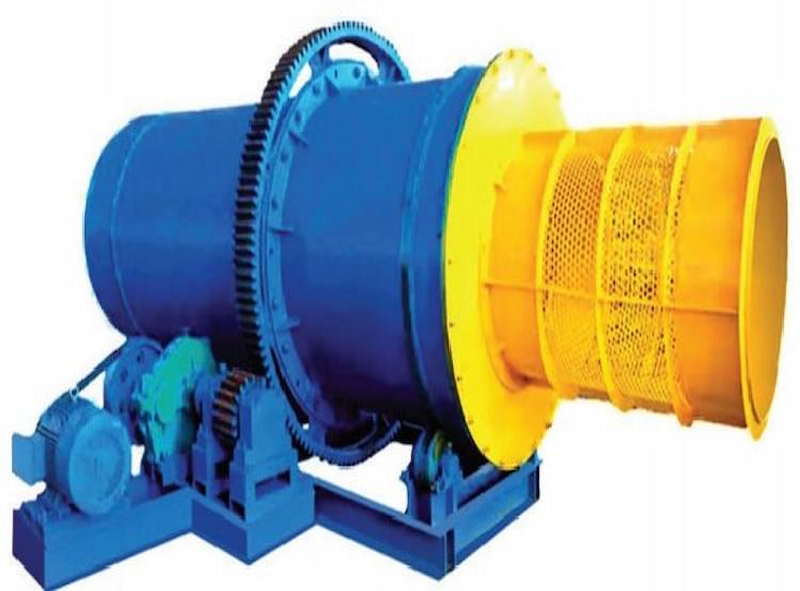

CATHAY drum ore washer | Powerful scrubbing + screening in one, processing high mud ore 200t/h learn more
Vibrating feeder
Electromagnetic vibrating feeder
Emailzhikangxie1@gamil.com
leave a message
zhikangxie1@gamil.com
product introduction
Product Overview
CATHAY hydrocyclone adopts the centrifugal separation principle and is specially designed for pulp classification/concentration/de-sludge. The separation accuracy is 0.025-0.15mm, the processing capacity is 20-800m³/h, and the underflow concentration is ≥65%. It is suitable for the efficient separation needs in metal mines, sand and gravel plants, chemical industry and other fields.
Core advantages
✅ Micron-level classification
- Classification accuracy 0.025mm (400 mesh), overflow fineness -0.074mm containing ≤10%
- Concentration ratio up to 1:15 (traditional equipment 1:8)
✅ Super wear resistance
- Lined with silicon carbide ceramic (Mohs hardness 9.2) or polyurethane (Shore hardness 95A)
- Continuous operation life ≥50,000 hours
✅ Intelligent regulation
- Automatic pressure monitoring (0.05-0.35MPa adjustable)
- IoT remote warning of blockage risk
✅ Multi-scenario adaptation
- Metal ore version: wear-resistant ceramic lining (gold/iron ore slurry classification)
- Chemical version: 316L stainless steel/PP material (acid and alkali corrosion resistant)
- Sand and gravel version: anti-blocking feeder (high sand content working condition)
Technical parameters (standard HC-350)
| Parameters | Indicators |
| Cyclone diameter | Φ350mm |
| Processing capacity | 80-120m³/h |
| Working pressure | 0.1-0.2MPa |
| Grading particle size | 0.037-0.15mm |
| Underflow concentration | ≥65% |
| Overflow fineness | -0.074mm≤15% |
Comparison with traditional equipment
| Index | CATHAY cyclone | Sedimentation tank |
| Grading accuracy | 0.025mm | 0.1mm |
| Concentration efficiency | Concentration completed in 5 minutes | 2-4 hours |
| Floor area | 2㎡ | 200㎡+ |
Four major application scenarios
✔ Metal ore classification:
- Gold/iron ore grinding circuit classification (overflow-0.074mm≤10%)
✔ Tailings concentration:
- Underflow concentration ≥ 65% (meet dry stack requirements)
✔ Sand and gravel plant recycling:
- 0.15mm fine sand recovery rate ≥ 95%
✔ Chemical separation:
Hydrofluoric acid corrosion resistance (applicable to PH1-14)
Table parameters
锥角(") Cone angle
溢流内径 (mm) Caliber
底流口径 (mm) Caliber
给料粒度 (mm) Granularity
给矿压力 (MPa) Pressure
处理能力 (m³/h) Capacity
外形尺寸(mm) Shape size
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next Wear-resistant scrubber | Gold/manganese ore cementation ore crushing Applicable to mud content ≤50% - CATHAY
Wear-resistant scrubber | Gold/manganese ore cementation ore crushing Applicable to mud content ≤50% - CATHAY
Subject : CATHAY hydrocyclone | Slurry classification and concentration expert Separation accuracy 0.025mm
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment
CATHAY SWS-200 Sand Screening Machine | Processing capacity 200t/h including fine sand recovery learn more
All-in-One Sand Washing Plant - Screening & Dewatering System | CATHAY learn more
CATHAY bucket wheel sand washing machine | Sand and gravel aggregate cleaning rate 99% Support customization learn more
Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY learn more
CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore learn more
CATHAY drum ore washer | Powerful scrubbing + screening in one, processing high mud ore 200t/h learn more
Vibrating feeder
Electromagnetic vibrating feeder
Emailzhikangxie1@gamil.com
leave a message
zhikangxie1@gamil.com
Source ID
#83
Images
8
Specs
16
Section 02
Technical Specifications
Verified manufacturer specifications for engineering review.
16 parameters
| Model | Um Size | Kg Weight | Cone angle | Mm Caliber | Mh Capacity | MPa Pressure | Mm Shape size | Mm Granularity |
|---|---|---|---|---|---|---|---|---|
| FX600 | 74-220 | 830 | 20 | 75-120 | 200-300 | 0.03-0.2 | 1075×1030×2250 | 13 |
| FX500 | 74-200 | 495 | 20 | 35-100 | 140-220 | 0.03-0.3 | 895×830×2050 | 10 |
| FX350 | 50-150 | 185 | 20 | 30-70 | 60-1C0 | 0.04-0.3 | 775×605×1765 | 6 |
| FX300 | 50-150 | 108 | 20 | 20-50 | 45-85 | 0.04-0.3 | 550×480×1415 | 5 |
| FX250 | 40-100 | 79 | 20 | 16-45 | 40-60 | 0.06-0.35 | 490×415×1215 | 3 |
| FX200 | 40-100 | 54 | 20 | 16-32 | 25-40 | 0.06-0.35 | 400×365×1030 | 2 |
| FX150 | 30-74 | 36 | 15 | 8-22 | 11-20 | 0.06-0.35 | 310×310×920 | 1.5 |
| 8 | — | — | 30-74 | 42 | — | — | — | — |
| FX125 | 20-100 | 10 | 17 8 | 8-18 | 8-15 | 0.06-0.35 | 210×185×620 | 1 |
| 20-74 | — | — | 250×240×985 | 12 | — | — | — | — |
| FX100 | 20-100 | 13 | 15 | 8-18 | 5-12 | 0.06-0.35 | 268×215×720 | 1 |
| 8 | — | — | 20-100 | 30 | — | — | — | — |
| FX75 | 20-74 | 4.2 | 15 7 | 6-12 | 2-5 | 0.1-0.4 | 240×230×465 | 0.6 |
| 5-40 | — | — | 240×230×800 | 7 | — | — | — | — |
| FX50 | 3-10 | 2 | 6 | 3-12 | 1.5-3 | 0.1-0.5 | 160×152×550 | 0.3 |
| FX25 | 2-10 | 1.3 | 5 | 2-5 | 0.3-1 | 0.1-0.5 | 120×110×576 | 0.2 |
