CATHAY Mud and Stone Separator | Powerful separation of high clay ores, processing capacity 500t/h

The mudstone separator is suitable for screening metallurgical,stone powder,coke,gangue,cobble, powder,coal,lump coal,stone,gold placer,coal,coke,white ash,large and small construction sites,coal yard,grain,blasting mill,foundry,seed nursery,medicinal material,building mortar and other garbage,as well as wet and easily blocked materials.The sieve holes can be customized according to materials.The middle 10-200 mm sieve holes can be customized and are wear-resistant and durable.
product introduction
Product Overview
CATHAY mud-stone separator is specially designed for high mud content mixed materials (clay ratio ≤ 50%), using multi-axis differential tearing + step screening technology to achieve efficient separation of mud and stone. The processing capacity is 100-800 tons/hour, the separation efficiency is ≥98%, replacing manual sorting, and the efficiency is increased by 20 times.
Core advantages
✅Powerful sorting
- Dual-axis differential tearing (25rpm/35rpm), cemented mud crushing rate ≥95%
- Stepped screening structure, stone (≥20mm) separation purity ≥99%
✅ Suitable for harsh working conditions
- Cutter head lined with tungsten-cobalt alloy (hardness HRA90), life ≥10,000 hours
- Direct processing of materials with moisture content ≤35%, no pre-dehydration required
✅ Zero-clogging design
- Self-cleaning roller + high-pressure spray system
- Overload automatic reversal protection
✅ Energy saving and land saving
- Power consumption per ton of material ≤0.6kW·h (traditional equipment 1.2kW·h)
- The floor space is reduced by 70% compared with traditional production lines
Technical parameters (NSF-3000 standard model)
| Parameters | Indicators |
| Processing capacity | 250-350t/h |
| Maximum feed size | ≤800mm |
| Sorting particle size | Mud ≤20mm / Stone ≥20mm |
| Power | 2×45kW |
| Separation efficiency | ≥98% |
| Equipment weight | 18.5t |
Comparison with traditional methods
| Index | CATHAY separator | Manual sorting |
| Processing capacity | 300t/h | 15t/shift |
| Sorting cost | 0.8 yuan/ton | 25 yuan/ton |
| Soil residue | ≤2% | 15%-30% |
Five major application scenarios
✔Metal mines: cemented ore pre-sorting (waste rock rate ↓40%)
✔Construction waste: separation of concrete blocks and slag (aggregate recovery ≥90%)
✔River dredging: instant sorting of sand, gravel and silt
✔ **Tunnel engineering: resource utilization of shield slag
✔ Stone factory: separation and purification of weathered rock, mudstone
Company Project
轴间隙(mm) Shaft clearance
Shaft clearance
轴数量(根) Number of axes
入料粒度(cm) Feed particle size
Feed particle size
处理量(t/h) Capacity
Debris separator
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next CATHAY hydrocyclone | Slurry classification and concentration expert Separation accuracy 0.025mm
CATHAY hydrocyclone | Slurry classification and concentration expert Separation accuracy 0.025mm
Subject : CATHAY Mud and Stone Separator | Powerful separation of high clay ores, processing capacity 500t/h
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

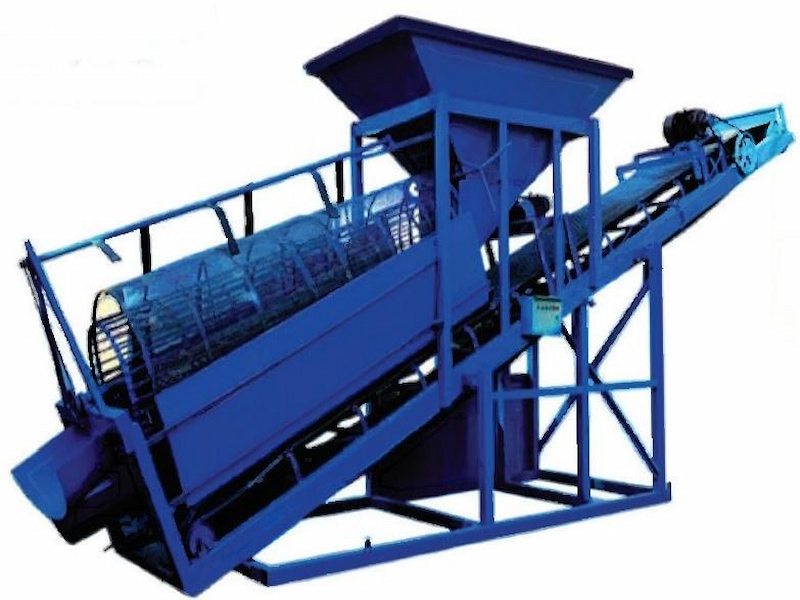

CATHAY SWS-200 Sand Screening Machine | Processing capacity 200t/h including fine sand recovery learn more

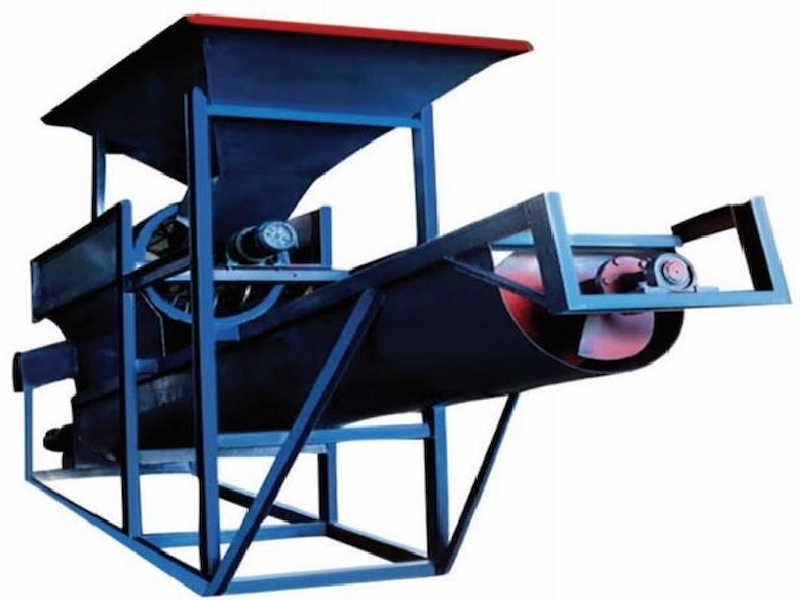

All-in-One Sand Washing Plant - Screening & Dewatering System | CATHAY learn more

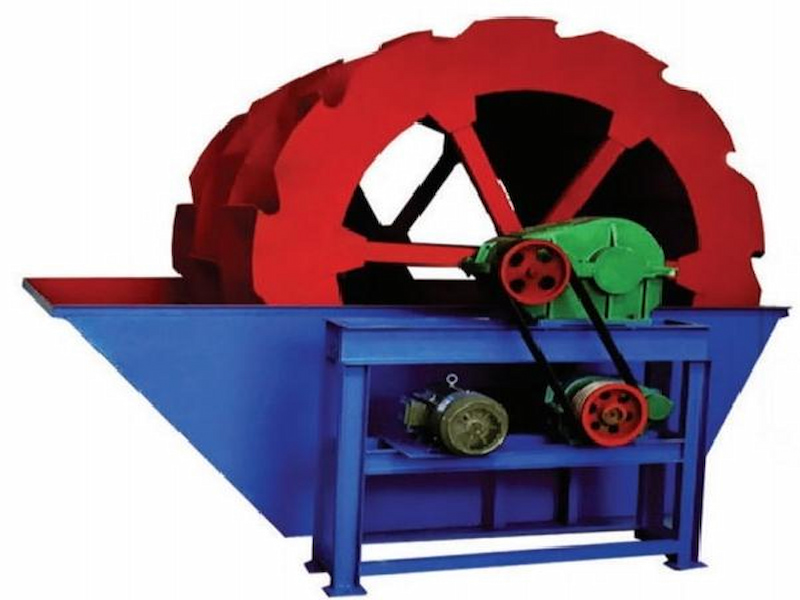

CATHAY bucket wheel sand washing machine | Sand and gravel aggregate cleaning rate 99% Support customization learn more

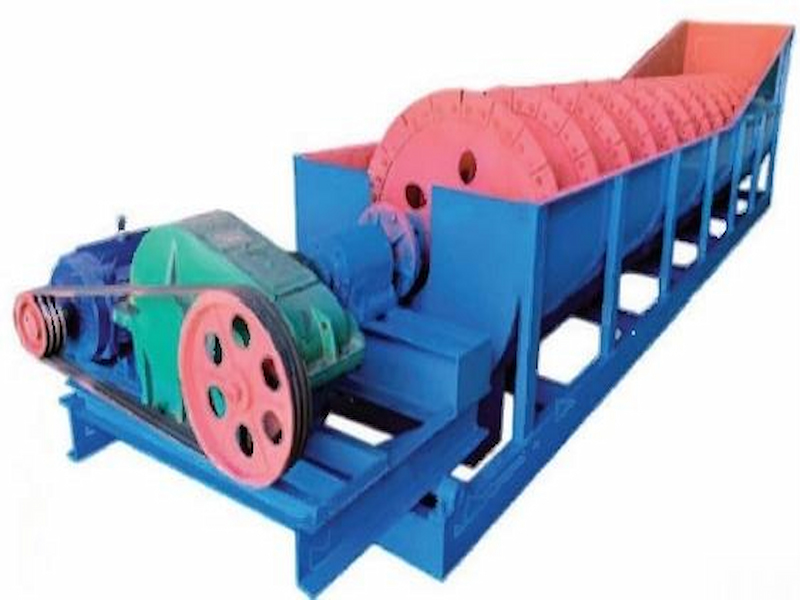

Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY learn more

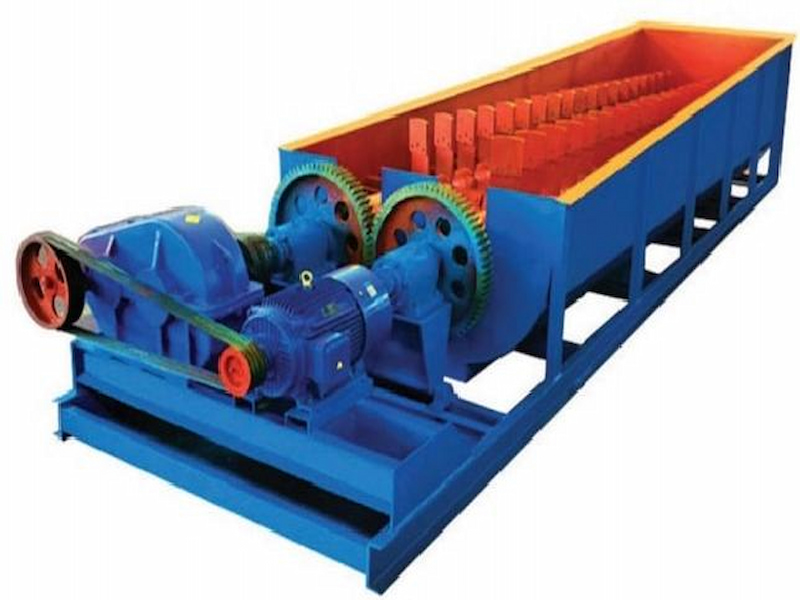

CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore learn more

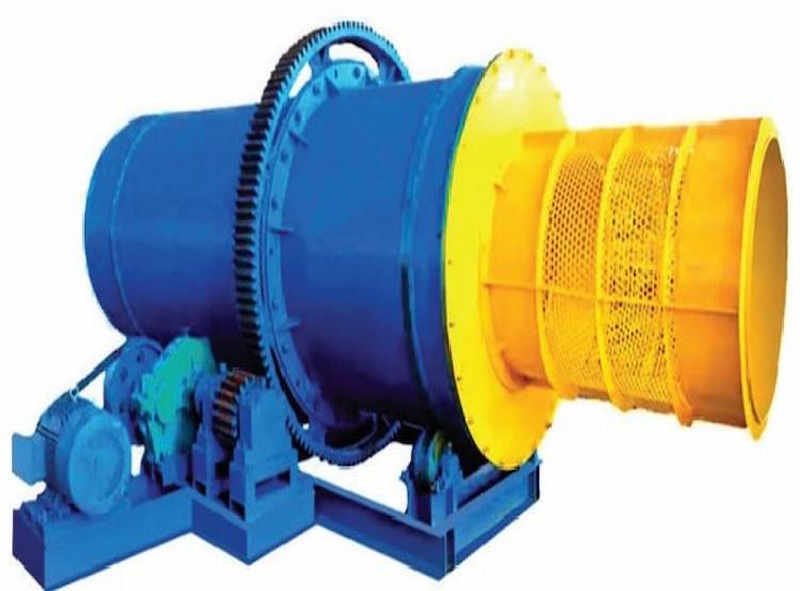

CATHAY drum ore washer | Powerful scrubbing + screening in one, processing high mud ore 200t/h learn more
