Wear-resistant scrubber | Gold/manganese ore cementation ore crushing Applicable to mud content ≤50% - CATHAY

The stirring scrubbing machine is suitable for natural or artificial sand with mineral particle size of 0-6mm,various loose mud plasmids,ore deposits or materials,for particle scrubbing purification and mud material dispersion, dissociation,and separation.It can effectively remove solvents and soil adhering to the surface of minerals or materials.The blades,shafts,and grooves of the stirring scrubber are lined with wear-resistant rubber,which is easy to resist material impact and wear,has a long service life,and a low failure rate.
product introduction
CATHAY stirring scrubber is specially designed for high clay-encapsulated minerals. It adopts dual-axis differential tearing technology to strongly peel clay from the surface of minerals. The clay peeling rate is ≥95%, the processing capacity is 50-500 tons/hour, and the mineral dissociation degree is increased by 40%, solving the problem of low recovery rate of cemented ore dressing.
Core advantages
✅ Powerful dissociation
- Dual-axis reverse rotation (25/40rpm differential speed), cemented ore group crushing rate ≥98%
- Clay residue on mineral surface ≤3% (traditional equipment ≤15%)
✅ Super wear resistance
- Blade lining tungsten carbide alloy (hardness HRA92) or rubber ceramic composite plate
- Continuous operation life ≥20,000 hours
✅ Intelligent control
- Frequency conversion speed regulation (10-40rpm stepless adjustment)
- Real-time monitoring of slurry concentration (30-70% adaptive)
✅ Energy saving and water saving
- Power consumption per ton of ore ≤1.2kW·h (traditional equipment 2.0kW·h)
- Water consumption reduced by 40% (closed-circuit water circulation system)
Technical parameters (standard AS-3000)
| Parameters | Indicators |
| Tank size | Φ3000×4500mm |
| Processing capacity | 120-200t/h |
| Power | 2×55kW |
| Maximum feed size | ≤25mm |
| Clay stripping rate | ≥95% |
| Applicable slurry concentration | 30%-70% |
Table parameters
叶轮直径(mm) Diameter
处理量(t/h) Capacity
外形尺寸(mm) Dimension
Stirring and scrubbing machine
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next CATHAY jaw crusher | Granite/basalt coarse crushing expert Feed ≤1200mm
CATHAY jaw crusher | Granite/basalt coarse crushing expert Feed ≤1200mm
Subject : Wear-resistant scrubber | Gold/manganese ore cementation ore crushing Applicable to mud content ≤50% - CATHAY
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

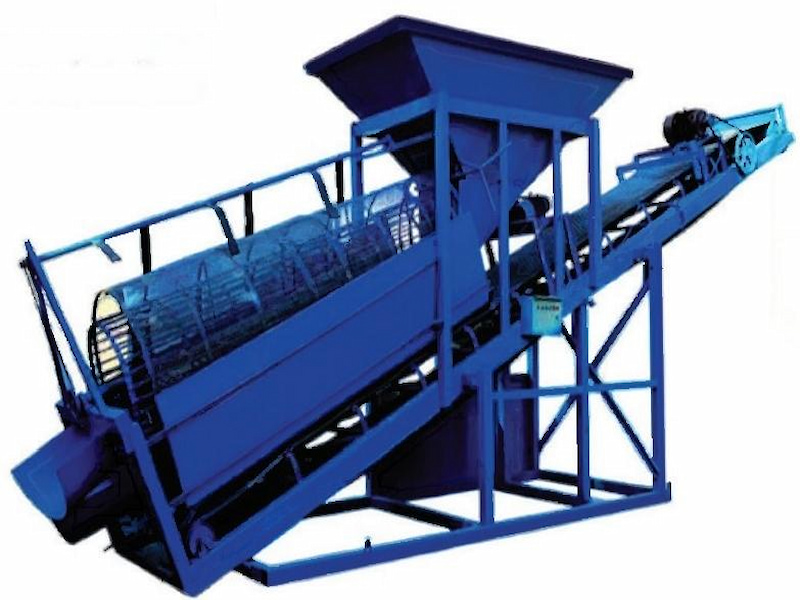

CATHAY SWS-200 Sand Screening Machine | Processing capacity 200t/h including fine sand recovery learn more
All-in-One Sand Washing Plant - Screening & Dewatering System | CATHAY learn more

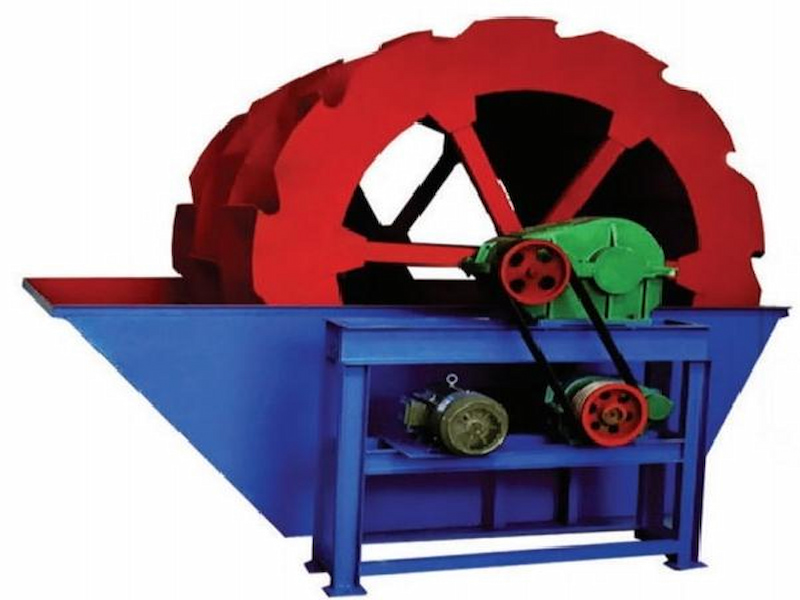

CATHAY bucket wheel sand washing machine | Sand and gravel aggregate cleaning rate 99% Support customization learn more

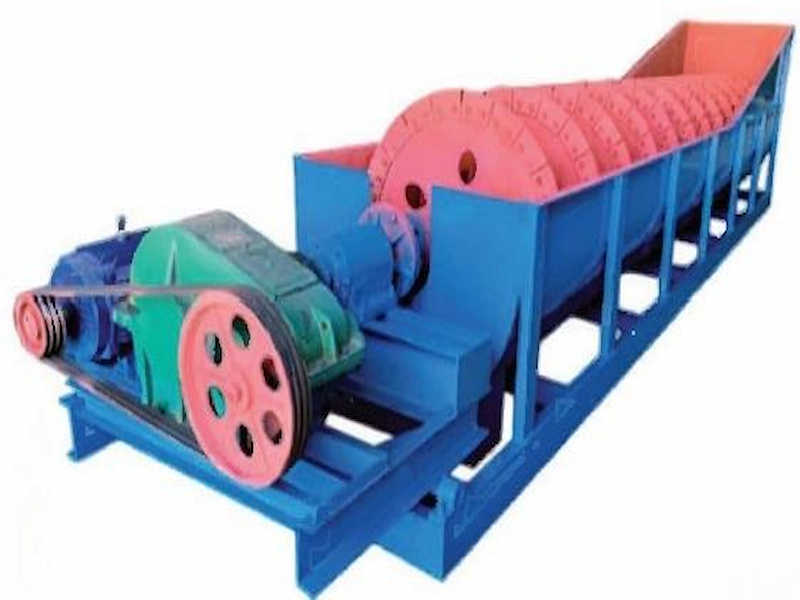

Spiral Sand Washer Manufacturer | Fine Material Recovery 200TPH | CATHAY learn more

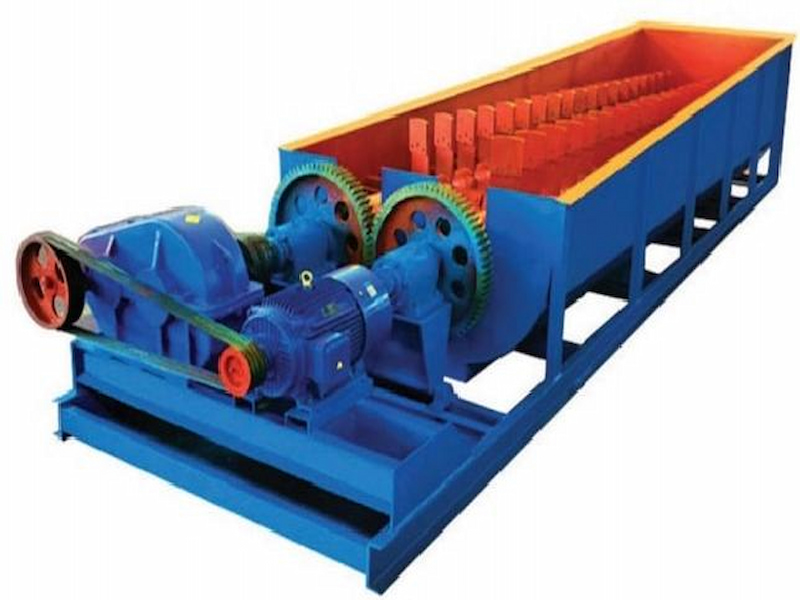

CATHAY Trough Ore Washer | Double-axis Powerful Scrubbing Mud and Stone Separation Rate 98% Special for Iron Ore/Manganese Ore learn more

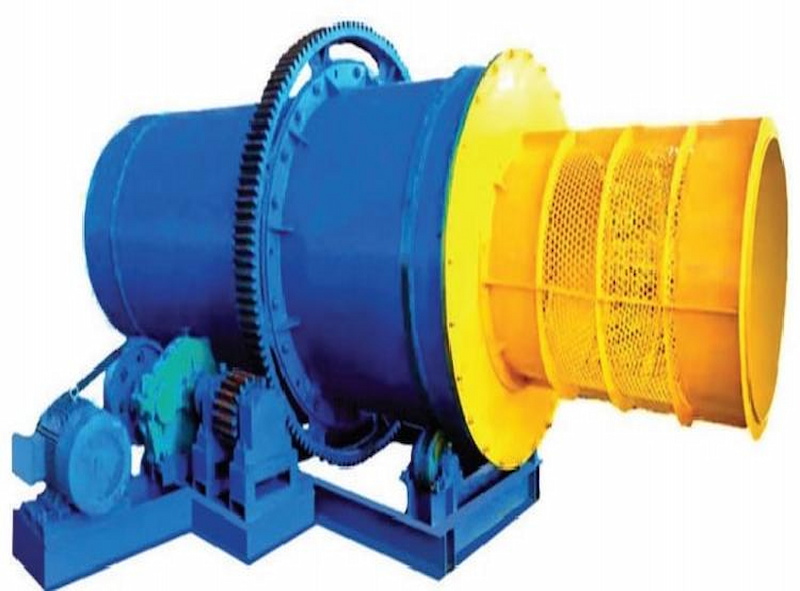

CATHAY drum ore washer | Powerful scrubbing + screening in one, processing high mud ore 200t/h learn more
