Square Swing Screen Manufacturer - Precision Screening Solutions | CATHAY

The square swing screen is a high-efficiency screening equipment developed and designed to meet the needs of users with large output and high accuracy.It is widely used in chemical,metallurgical,mining,feed industry,food and other industries.Especially suitable for heavy alkali,salt,resin,compound fertilizer,large and small particle urea,feed,reduced iron powder,zirconium oxide,ceramsite,barite,etc。
product introduction
CATHAY square swing screen adopts the principle of artificial swing screening, and is a high-precision screening equipment designed for fine powders (50-800 mesh) and difficult-to-screen materials. Through the three-dimensional elliptical motion trajectory, it achieves efficient classification and low crushing rate, and is particularly suitable for high-demand industries such as food, medicine, and chemicals.
Core advantages
1. Precision grading technology
- Micron-level screening: grading accuracy 0.025-5mm (500 mesh-5mm)
- Multi-layer synchronous screening: 1-5 layers of screen configuration, single machine output 4-6 specifications
- Zero clogging design: bouncing ball/ultrasonic automatic screen cleaning system (screen cleaning efficiency ≥98%)
2. Sanitary structure
- Optional materials: 304/316L stainless steel (surface Ra≤0.6μm mirror polishing)
- No dead angle design: quick-release sealing structure (cleaning time <10 minutes)
- Complete certification: GMP, FDA, CE certification (special model for medicine and food)
3. Intelligent control
- Frequency conversion speed regulation: 50-300 times/minute stepless adjustment
- Internet of Things monitoring: real-time display of screen status, output, energy consumption
One-key production change: store 30 sets of process parameters
Technical parameters
| Parameters | Standard model (SWS-800) | Customization range |
| Screen surface size | 800×800mm | 500×500mm~1500×1500mm |
| Screening accuracy | 0.038-5mm | 0.025-10mm |
| Processing capacity | 0.1-2t/h (single layer) | Maximum 5t/h |
| Power | 0.55-3kW | Explosion-proof motor optional |
| Noise | ≤68dB | Silent type ≤62dB |
Table parameters
回转频次(r/min) Frequency
外形尺寸(mm) Dimension
Square swing screen
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Next Circular Vibrating Sifter - Fine Powder Classification Equipment
Circular Vibrating Sifter - Fine Powder Classification Equipment
Subject : Square Swing Screen Manufacturer - Precision Screening Solutions | CATHAY
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment

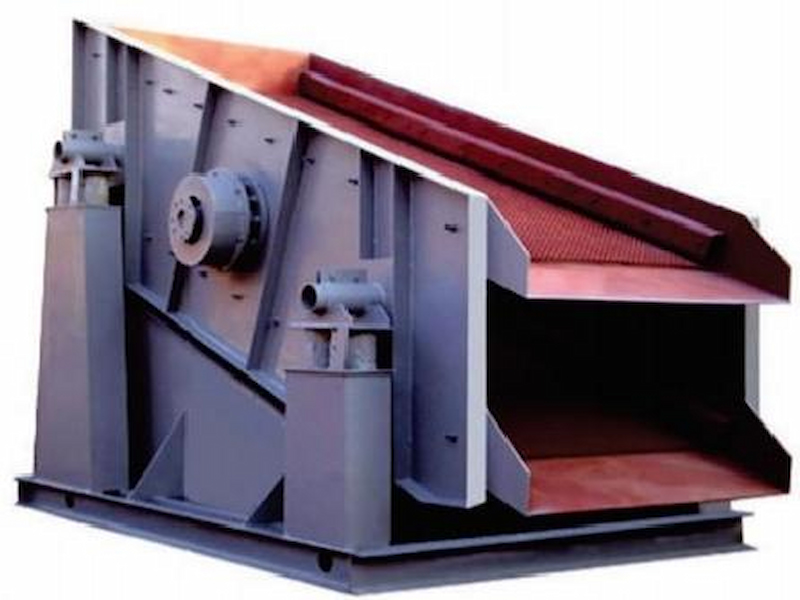

Vibrating Screen Manufacturer | Mining & Aggregate Screening Solutions - CATHAY learn more

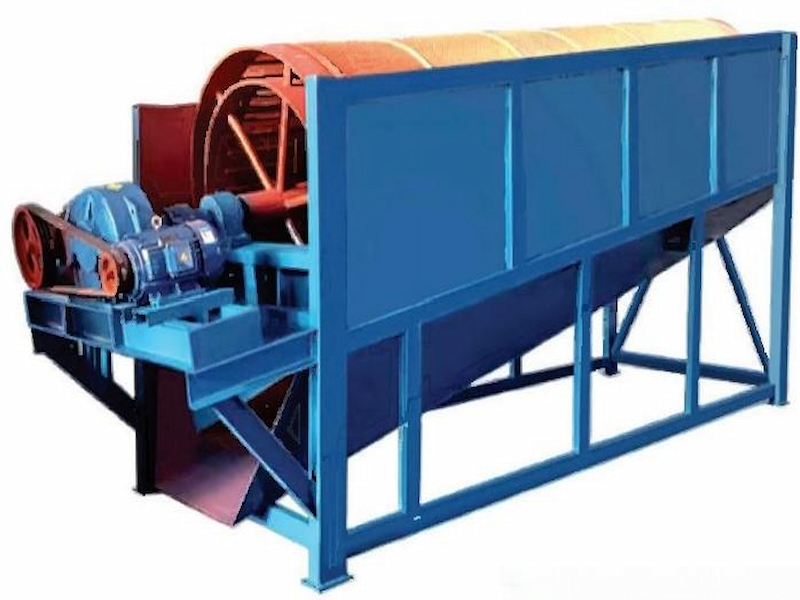

CATHAY Drum Screen | Professional Ore/Sand Gravel Grading and Screening Equipment learn more

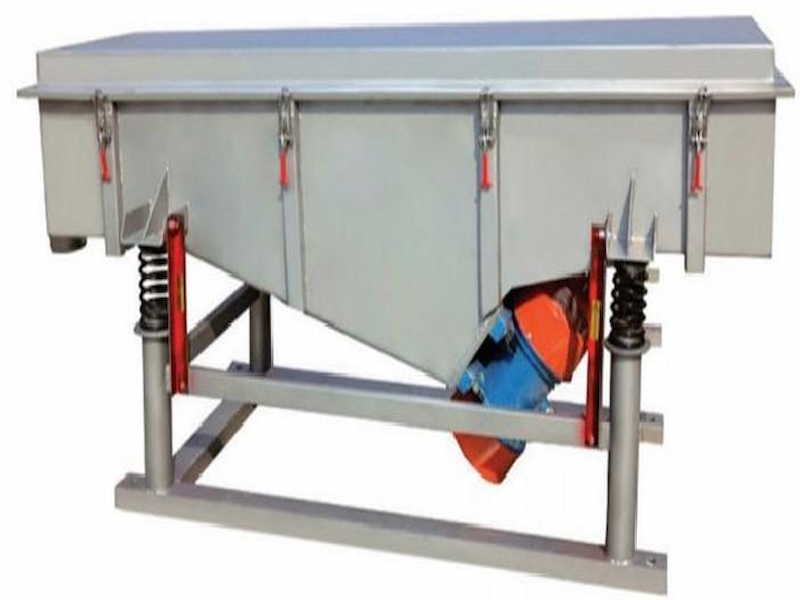

Linear Vibrating Screen Manufacturer - Mining & Aggregate Screening | CATHAY learn more

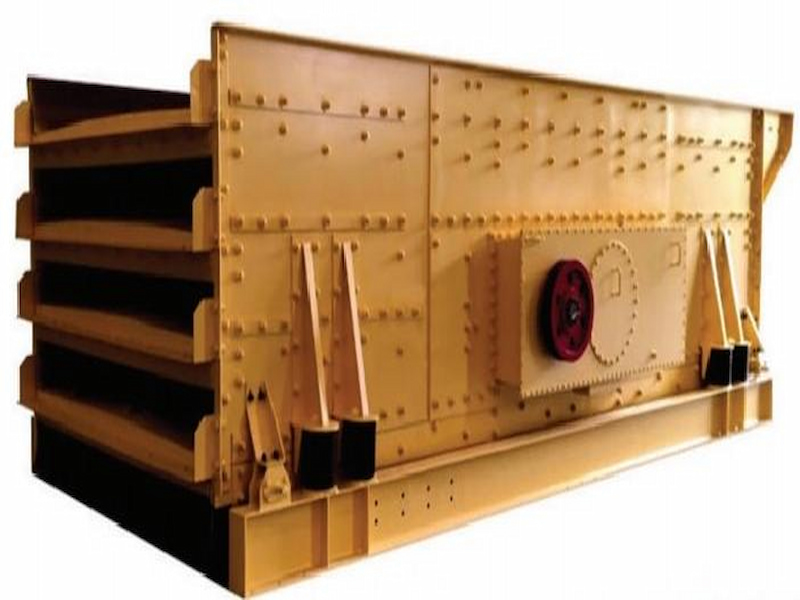

CATHAY Horizontal Vibrating Screen | Mining/Chemical Industry Specialized High Efficiency and Precision Screening learn more
Square Swing Screen Manufacturer - Precision Screening Solutions | CATHAY learn more

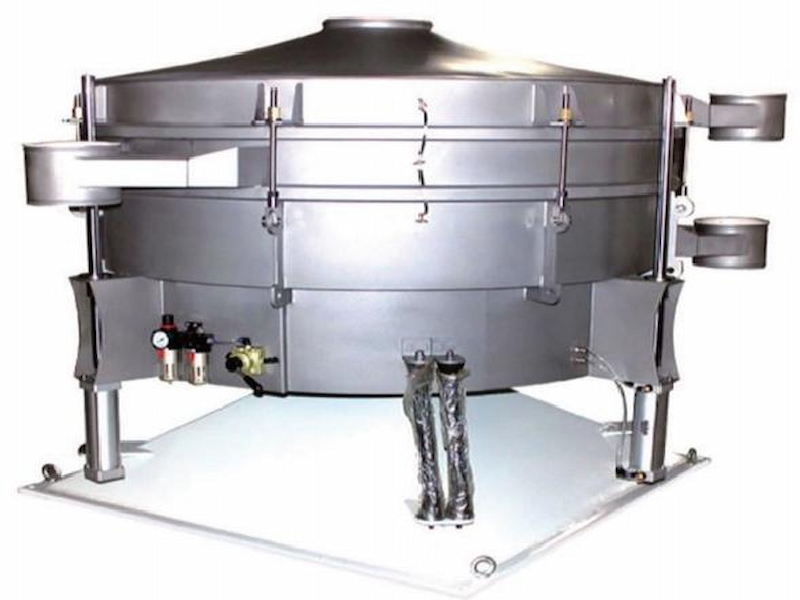

Circular Vibrating Sifter - Fine Powder Classification Equipment learn more
