Mining handling equipment
Mining handling equipment
Trough Ore Washer LX-2500
The trough type ore washing machine is widely used in black and non-ferrous metallurgical mines,steel, chemical,building materials,coal,smelting and other industries.It isan ideal equipment forenterprises with large processing capacity to meet the cleanliness requirements of ores and stones for various easily washed and difficult to wash ores.Washing can avoid the blockage of the crushing and screening equipment by the muddy substances in the raw materials containing mud minerals.If the raw materials contain soluble useful or harmful components,they should also be washed.
product introduction
CATHAY trough ore washer is specially designed for high-mud content ores (clay content ≤40%), and adopts dual-axis differential strong scrubbing technology to achieve efficient separation of mud and stone. The cleaning rate is ≥98%, and the processing capacity is 50-300 tons/hour. It is suitable for difficult-to-wash ores such as iron ore, manganese ore, and gold ore.
Core advantages
✅ Powerful mud removal
- Dual-axis reverse rotation, 200 times/minute strong friction
- Processing cemented ore with mud content ≤40% (traditional equipment ≤20%)
✅ Wear-resistant and durable
- Blades and trough lining high chromium alloy steel (hardness HRC62)
- Continuous operation life ≥50,000 hours
✅ Energy saving and water saving
- Water consumption 3m³/ton of ore (traditional equipment 5-8m³)
- Power configuration is 15-20% lower than peers
✅ Intelligent protection
- Overload automatic reversal to prevent jamming
- Triple bearing seal design
Technical parameters (standard LX-2500)
| Parameters | Indicators |
| Processing capacity | 100-200t/h |
| Trough size | 2500×6000mm |
| Motor power | 2×45kW |
| Maximum feed size | ≤100mm |
| Cleaning rate | ≥98% |
| Water consumption | 300-600m³/h |
Comparison with traditional equipment

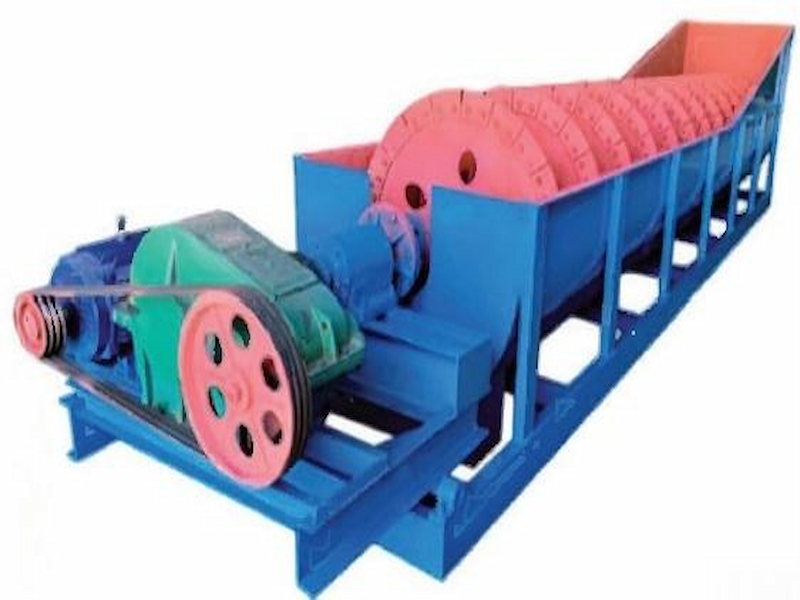

| Index | CATHAY trough machine | Spiral ore washer |
| Upper limit of clay treatment | 40% | 20% |
| Water consumption per ton of ore | 3m³ | 6m³ |
| Maintenance cycle | 800 hours | 300 hours |
Applicable scenarios
✔ Iron ore: Hematite/limonite clay stripping
✔ Manganese ore: Cemented manganese ore mud crushing and cleaning
✔ Gold ore: Weathered ore mud gold particle recovery
✔ Construction aggregate: Mountain sand desludging and purification
product introduction
CATHAY trough ore washer is specially designed for high-mud content ores (clay content ≤40%), and adopts dual-axis differential strong scrubbing technology to achieve efficient separation of mud and stone. The cleaning rate is ≥98%, and the processing capacity is 50-300 tons/hour. It is suitable for difficult-to-wash ores such as iron ore, manganese ore, and gold ore.
Core advantages
✅ Powerful mud removal
- Dual-axis reverse rotation, 200 times/minute strong friction
- Processing cemented ore with mud content ≤40% (traditional equipment ≤20%)
✅ Wear-resistant and durable
- Blades and trough lining high chromium alloy steel (hardness HRC62)
- Continuous operation life ≥50,000 hours
✅ Energy saving and water saving
- Water consumption 3m³/ton of ore (traditional equipment 5-8m³)
- Power configuration is 15-20% lower than peers
✅ Intelligent protection
- Overload automatic reversal to prevent jamming
- Triple bearing seal design
Technical parameters (standard LX-2500)
| Parameters | Indicators |
| Processing capacity | 100-200t/h |
| Trough size | 2500×6000mm |
| Motor power | 2×45kW |
| Maximum feed size | ≤100mm |
| Cleaning rate | ≥98% |
| Water consumption | 300-600m³/h |
Comparison with traditional equipment
| Index | CATHAY trough machine | Spiral ore washer |
| Upper limit of clay treatment | 40% | 20% |
| Water consumption per ton of ore | 3m³ | 6m³ |
| Maintenance cycle | 800 hours | 300 hours |
Applicable scenarios
✔ Iron ore: Hematite/limonite clay stripping
✔ Manganese ore: Cemented manganese ore mud crushing and cleaning
✔ Gold ore: Weathered ore mud gold particle recovery
✔ Construction aggregate: Mountain sand desludging and purification
Source ID
#89
Images
7
Specs
7
Section 02
Technical Specifications
Verified manufacturer specifications for engineering review.
7 parameters
| Angle | Model | Power (kW) | Weight (kg) | Diameter (mm) | Capacity (t/h) | Granularity (mm) | Velocity (r/min) |
|---|---|---|---|---|---|---|---|
| ≤12 | 2RXL320 | 4 | 2600 | φ320×3200 | 10 | ≤30 | 28 |
| ≤12 | 2RXL400 | 5.5 | 3800 | φ400×4600 | 20 | ≤30 | 23 |
| ≤12 | 2RXL540 | 7.5 | 5800 | φ540×4600 | 25 | ≤30 | 23 |
| ≤12 | 2RXL750 | 15 | 7200 | φ750×7600 | 50 | ≤70 | 22.7 |
| ≤12 | 2RXL800 | 18.5 | 9600 | φ800×7600 | 60 | ≤70 | 22 |
| ≤12 | 2RXL914 | 22 | 11500 | φ914×7600 | 70 | ≤70 | 21 |
| ≤12 | 2RXL1118 | 30 | 13700 | φ1118×8600 | 100 | ≤70 | 20 |
Engineered Performance
Built for the
Built for the
Field.
Engineered Materials
High-strength alloy frames hardened against continuous abrasion, vibration, and extreme thermal cycling.
Service Network
On-site commissioning and 24/7 maintenance support across the Atlas Mountains region.
Spare Parts Inventory
Localized warehouse keeps OEM parts in stock for same-week turnaround.
Status: Field-Tested
Build: Production
