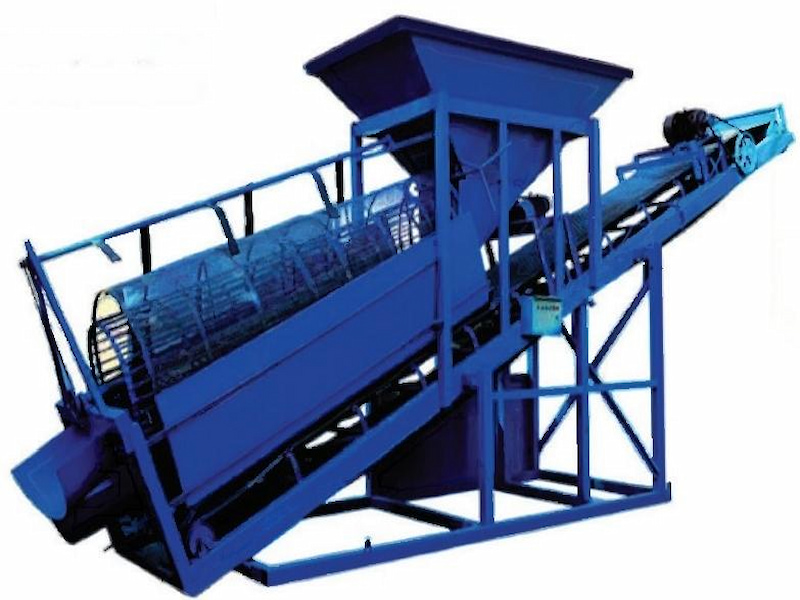

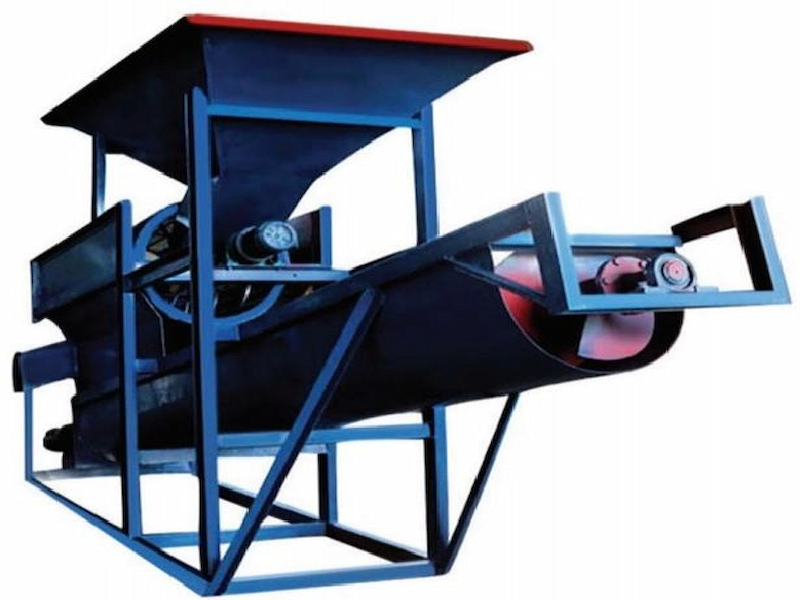

Drum Ore Washer

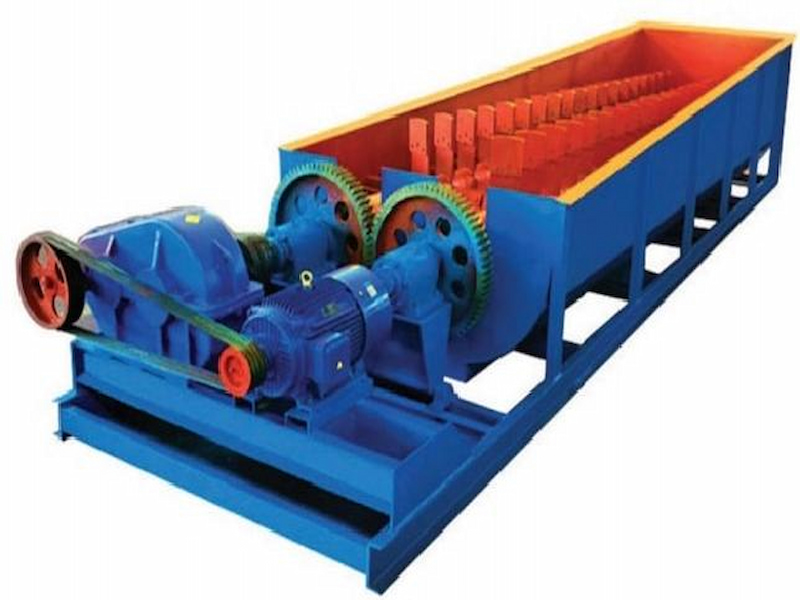

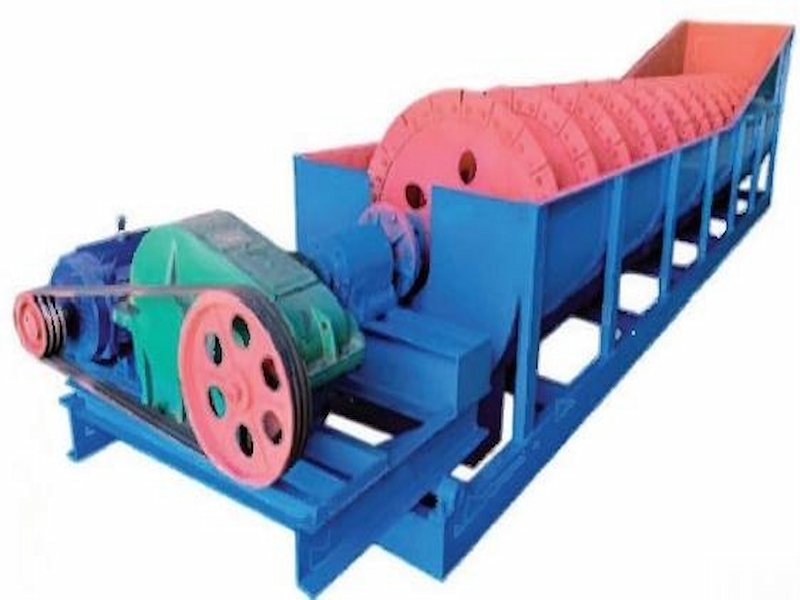

The cylindrical ore washing machine is widely used for various difficult to wash large ores, divided into two types: cylindrical and cylindrical with screening strips. The latter can divide the washed material into two levels of products: +40mm and -40mm. The -40mm can be further scrubbed by a double spiral groove ore washing machine to divide the material into two levels of products: +2mm and -2mm. The ore washing efficiency can reach about 98%, and this combination is the most effective method for difficult to wash ores.
Product Introduction
CATHAY cylindrical ore washer is specially designed for high-clay and easy-to-cement ores, integrating strong scrubbing and grading screening. The clay on the surface of the mineral is peeled off by the high-speed rotating lining plate, and the ore grading is completed simultaneously. The cleaning rate is ≥98%, and the processing capacity is 50-500 tons/hour, which solves the problems of low efficiency and high water consumption of traditional processes.
Core advantages
✅ Scrubbing and screening synchronously
- Strong stirring of wear-resistant lifting plate in the barrel, clay stripping rate ≥95%
- End grading screen (5-80mm adjustable), coarse material is discharged directly
✅ Wear-resistant and long life
- Lined with high chromium alloy/rubber composite plate (hardness HRC60)
- Continuous operation for 60,000 hours without major repairs
✅ Energy saving and water saving
- Water consumption is only 2.5m³/ton of ore (traditional equipment 5-8m³)
- Frequency conversion drive saves 25% of electricity
✅ Intelligent anti-blocking
- Overload automatic reversal + high-pressure spray system
- Triple bearing seal to prevent mud and sand intrusion
Technical parameters (TS-3200 standard model)
| Parameters | Index |
| Barrel size | Φ3.2×6m |
| Processing capacity | 150-250t/h |
| Motor power | 75kW |
| Maximum feed size | ≤300mm |
| Cleaning rate | ≥98% |
| Water consumption | 375-625m³/h |
Comparison with traditional equipment
| Indicators | CATHAY drum machine | Trough ore washer |
| Clay processing capacity | ≤45% | ≤40% |
| Water consumption per ton of ore | 2.5m³ | 3.5m³ |
| Floor space | Reduced by 50% | - |
Applicable scenarios
✔ Cemented ore: Clay group crushing of manganese ore/nickel ore
✔ Placer gold ore: Gravel screening + gold particle recovery synchronization
✔ Construction aggregate: Deep mud removal of weathered mountain sand
✔ Iron ore: Red mud stripping on the surface of hematite
Product Introduction
CATHAY cylindrical ore washer is specially designed for high-clay and easy-to-cement ores, integrating strong scrubbing and grading screening. The clay on the surface of the mineral is peeled off by the high-speed rotating lining plate, and the ore grading is completed simultaneously. The cleaning rate is ≥98%, and the processing capacity is 50-500 tons/hour, which solves the problems of low efficiency and high water consumption of traditional processes.
Core advantages
✅ Scrubbing and screening synchronously
- Strong stirring of wear-resistant lifting plate in the barrel, clay stripping rate ≥95%
- End grading screen (5-80mm adjustable), coarse material is discharged directly
✅ Wear-resistant and long life
- Lined with high chromium alloy/rubber composite plate (hardness HRC60)
- Continuous operation for 60,000 hours without major repairs
✅ Energy saving and water saving
- Water consumption is only 2.5m³/ton of ore (traditional equipment 5-8m³)
- Frequency conversion drive saves 25% of electricity
✅ Intelligent anti-blocking
- Overload automatic reversal + high-pressure spray system
- Triple bearing seal to prevent mud and sand intrusion
Technical parameters (TS-3200 standard model)
| Parameters | Index |
| Barrel size | Φ3.2×6m |
| Processing capacity | 150-250t/h |
| Motor power | 75kW |
| Maximum feed size | ≤300mm |
| Cleaning rate | ≥98% |
| Water consumption | 375-625m³/h |
Comparison with traditional equipment
| Indicators | CATHAY drum machine | Trough ore washer |
| Clay processing capacity | ≤45% | ≤40% |
| Water consumption per ton of ore | 2.5m³ | 3.5m³ |
| Floor space | Reduced by 50% | - |
Applicable scenarios
✔ Cemented ore: Clay group crushing of manganese ore/nickel ore
✔ Placer gold ore: Gravel screening + gold particle recovery synchronization
✔ Construction aggregate: Deep mud removal of weathered mountain sand
✔ Iron ore: Red mud stripping on the surface of hematite
Source ID
#88
Images
7
Specs
8
Section 02
Technical Specifications
Verified manufacturer specifications for engineering review.
8 parameters
| Model | Power (kW) | Weight (kg) | Capacity (t/h) | Granularity (mm) | Screen size (mm) | Velocity (r/min) | Water gage (MPa) |
|---|---|---|---|---|---|---|---|
| RXT1030 | 15 | 4800 | 30-50 | ≤100 | ≥5 | 25-28 | 0.4-0.5 |
| RXT1230 | 18.5 | 5800 | 50-70 | ≤100 | ≥5 | 23-25 | 0.4-0.5 |
| RXT1545 | 30 | 6900 | 70-120 | ≤150 | ≥5 | 18-22 | 0.4-0.5 |
| RXT1560 | 37 | 8300 | 80-130 | ≤150 | ≥5 | 18-22 | 0.4-0.5 |
| RXT1845 | 45 | 11800 | 90-130 | ≤170 | ≥5 | 20-21 | 0.4-0.5 |
| RXT1860 | 45 | 12800 | 100-140 | ≤170 | ≥5 | 20-21 | 0.4-0.5 |
| RXT2060 | 55 | 14800 | 120-160 | ≤210 | ≥5 | 19-20 | 0.4-0.5 |
| RXT2265 | 55 | 16500 | 160-180 | ≤230 | ≥5 | 19-20 | 0.4-0.5 |
