CATHAY Belt Feeder - Efficient, Stable, Continuous and Uniform Material Conveying Solution
The belt conveyor can be widely used in metallurgy,mineral processing,building materials,hydropower and other departments.It can be used to transport various bulk and granular bulk materials with accumulated bulk weight of 0.5-2.5t/According to the requirements of the conveying process,it can be conveyed by one unit or by several units or by other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different types of operation lines.
product introduction
CATHAY belt feeder is a highly efficient continuous conveying equipment designed for mining, building materials, metallurgy and other industries. It adopts high-strength conveyor belt and modular structure to achieve large-capacity, uniform and stable transportation of block and granular materials. The equipment processing capacity can reach 50-2000t/h, meeting the diverse needs from small and medium-sized production lines to large mines.
Core advantages
1. Super durability
- Wear-resistant conveyor belt: EP/NN high-strength rubber belt**, with a 6-15mm wear-resistant layer on the surface, impact-resistant and tear-resistant, with a service life 50% longer than ordinary belts
- Heavy-duty structure: The grooved roller bracket adopts 10mm thick steel plate, with strong dynamic bearing capacity, suitable for harsh working conditions in mines
- Anti-deviation design: Equipped with automatic deviation correction device and anti-side roller to ensure long-term stable operation of the belt
2. Accurate and controllable
- Frequency conversion speed regulation: Siemens/ABB frequency converter is used, and the feed amount adjustment accuracy reaches ±2%
- Intelligent linkage: It can be connected to the PLC control system to achieve start and stop synchronization with the crusher and screening machine
- Multi-speed control: 5 speed modes are preset for different materials (such as ore and coal)
3. High efficiency and energy saving
- Low resistance design: Optimize the roller spacing (≤800mm), and reduce the operating power consumption by 15-20%
- Closed structure: Optional dust cover to reduce material spillage and meet environmental protection requirements
- Quick replacement: Modular design, belt replacement time ≤2 hours
4. Safe and reliable
- Double protection: Equipped with pull rope emergency stop switch + deviation alarm device
- Anti-slip treatment: The driving roller is wrapped with herringbone rubber, which does not slip in rainy days
- Anti-blocking design: Inverted V-shaped guide plate at the discharge port to prevent material jamming
Technical parameters
| Parameter item | Specification range |
| Band width | 500-2000mm |
| Belt speed | 0.1-2.5m/s adjustable |
| Conveying capacity | 50-2000t/h |
| Maximum inclination | ≤25° |
| Motor power | 5.5-160kW |
| Applicable materials | Ore, coal, sand and gravel, etc. (particle size ≤300mm) |
Industry solutions
✔ Metal mines: Used with jaw crushers to transport iron ore/copper ore (recommended bandwidth ≥1200mm)
✔ Sand and gravel aggregates: Used for feeding the secondary crushing buffer bin (dust-proof and sealed models are optional)
✔ Coal transfer: Cold-resistant belt model (applicable to low-temperature environments of -40℃)
✔ Cement production: High-temperature resistant design (material temperature ≤120℃)
Service Commitment
- 3-year warranty: Core components (drums, reducers) with extended warranty
- 48-hour response: 30 service outlets nationwide for quick on-site service
Free design: Provide 3D layout plan + capacity estimation report
Table parameters
带宽(mm) Belt width
首尾轮中心距(mm) Center distance
Center distance
首尾轮直径(mm) Diameter
给料能(t/h) Capacity
给料粒度(mm) Feed grain size
Feed grain size
500X1000 500X2000
Previous Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions"

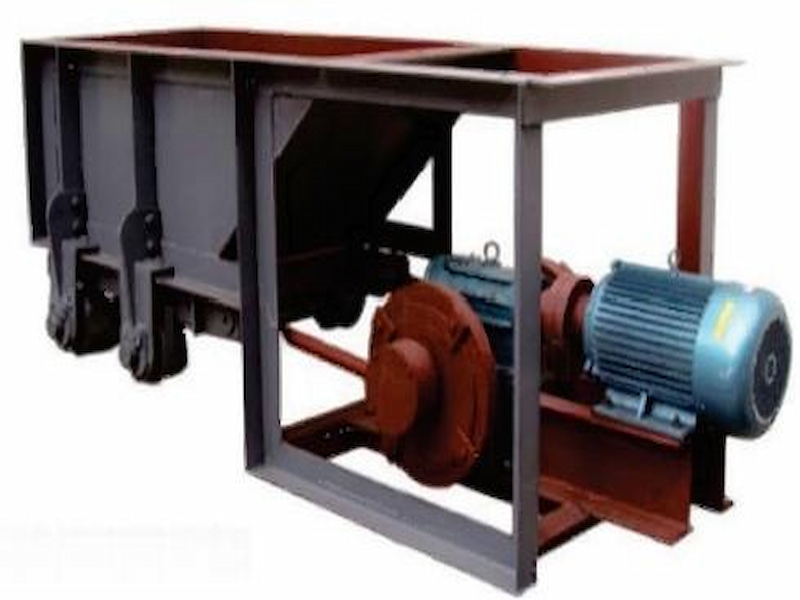

Next CATHAY Chain Feeder - Heavy-duty Material Conveying Expert Wear-resistant and durable Stable and reliable
CATHAY Chain Feeder - Heavy-duty Material Conveying Expert Wear-resistant and durable Stable and reliable
Subject : CATHAY Belt Feeder - Efficient, Stable, Continuous and Uniform Material Conveying Solution
Mining feeder equipment
Vibrating screen
Ore dressing machine
Mining handling equipment
Trough Feeders for Mining & Aggregates | Heavy-Duty Ore Feeding Solutions" learn more

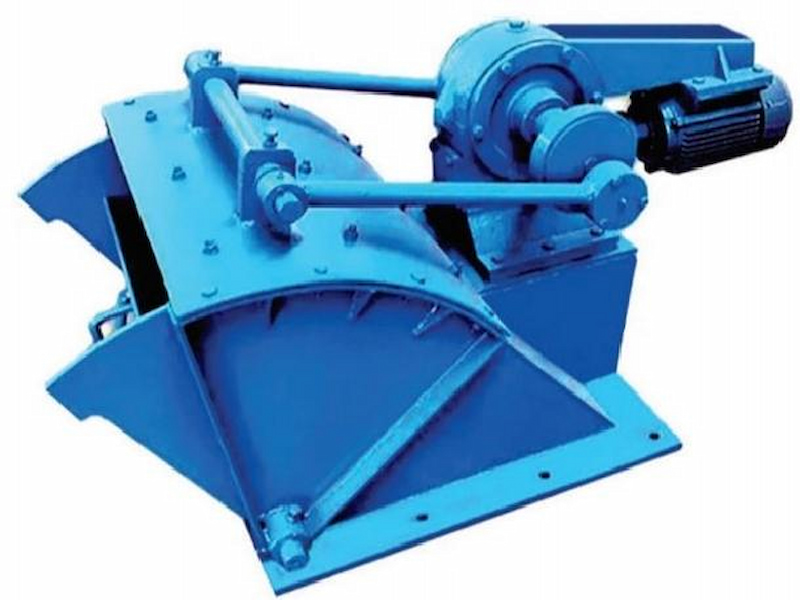

CATHAY Pendulum Feeder – Reliable Ore Feeding for Mining learn more

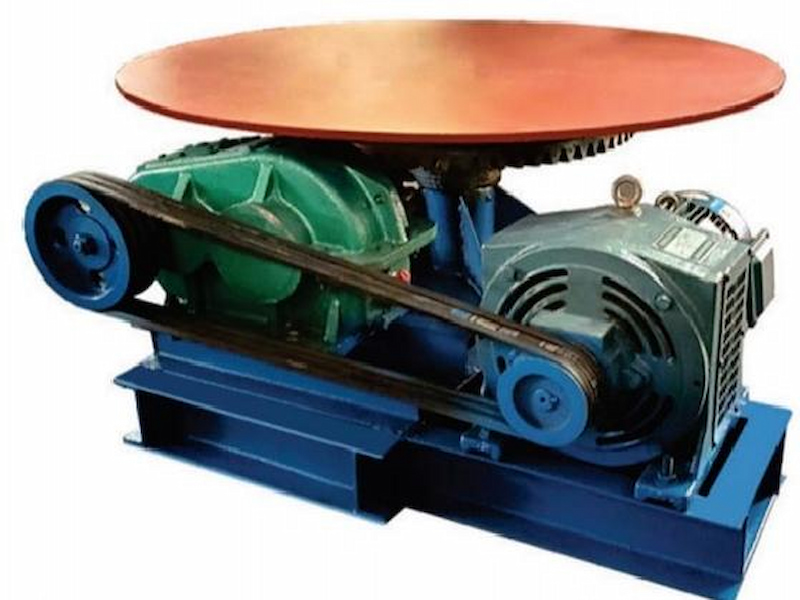

CATHAY disc feeder | wear-resistant and durable, precise quantitative feeding learn more

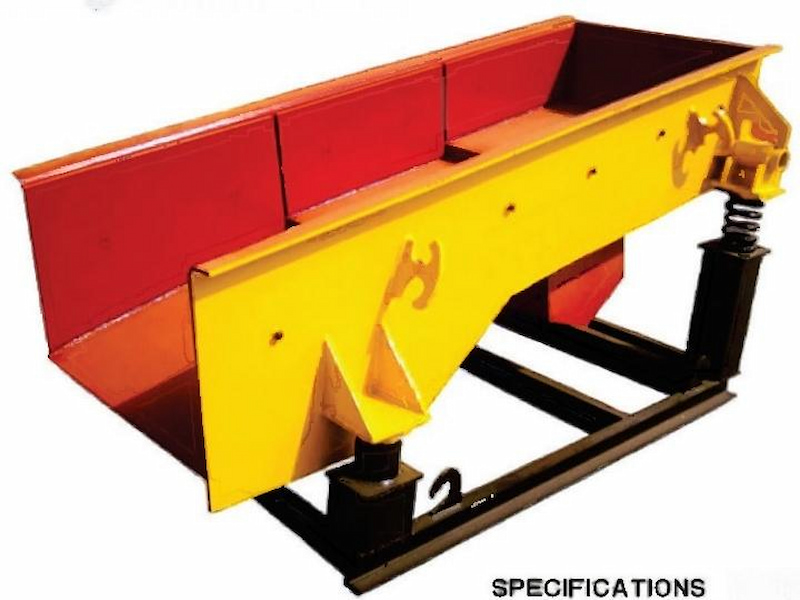

CATHAY vibrating feeder - efficient and stable mining material transportation expert learn more

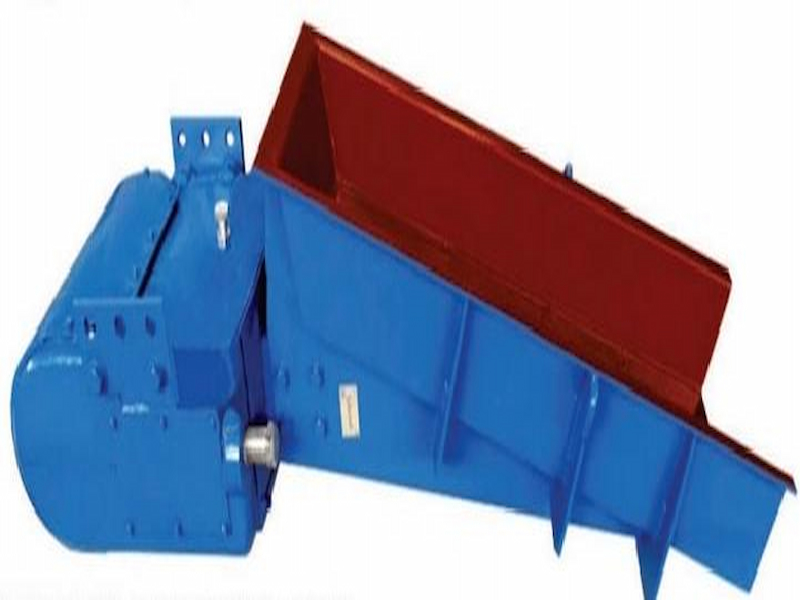

CATHAY electromagnetic vibrating feeder - intelligent, precise, efficient and energy-saving material conveying solution learn more

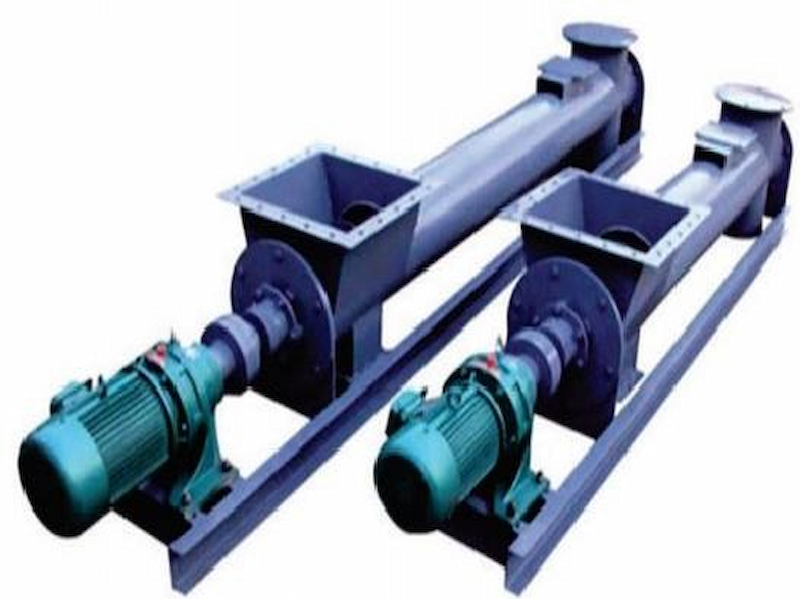

CATHAY Screw Feeder | Professional conveying equipment for powder/granular materials learn more
